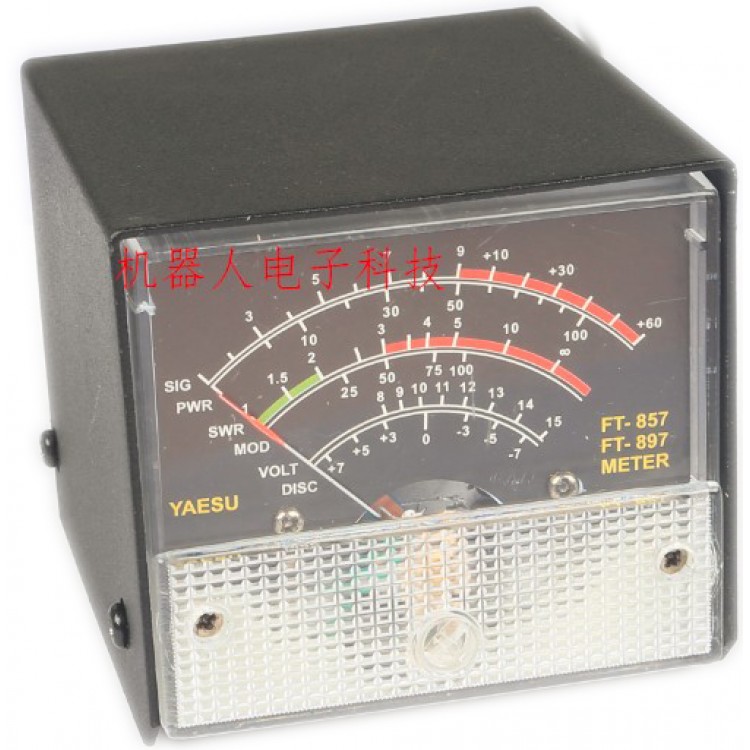

External S Meter SWR Power Multifunctional Extension Meter for Yaesu FT-857 FT-897

External S Meter SWR Power Multifunctional Extension Meter for Yaesu FT-857 FT-897

Specification：
- Size:65x55x70mm
- Material: Metal
- Color: black/white

FT-857D, FT-897D external display settings header method:
Receive Display Settings:
- Press [FUNC] key to enter the setup menu, enable the extended menu.
- Rotate the [SELECT] to call up the menu item No-060 [MTR ARX SEL].

Rotate [DIAL] to select the external instrument display:
-SIG: Display input signal strength
-CTR: Discriminator Center Meter
-VLT: Battery voltage
-N / A: Blank
-FS: Buckle instrument 1mA full scale output signal calibration standard external instrument
-OFF: Turn off the meter.
- Press [FUNC] key to save settings and exit the setup menu.

Emission display settings:
- Press [FUNC] key to enter the setup menu, enable the extended menu.
- Rotate the [SELECT] to call up the menu item No-061 [MTR ATX SEL].

Rotate [DIAL] to select the external instrument display:
-PWR: Display transmit power
-ALC: Display automatic level control voltage
-MOD: Display modulation level
-SWR: Display VSWR
-VLT: Display Supply Voltage
-N / A: Blank
-OFF: Turn off the meter.

Calibration method is as follows
- Press [FUNC] key to enter the setup menu, enable the extended menu.
- Rotate the [SELECT] to call up the menu item No-060 [MTR ARX SEL].
- Rotate [DIAL] to select FS.
- With a small flathead screwdriver to adjust the rear calibration adjustment hole, so that the table header pointer to full scale.
- The calibration is complete!
If you can not find the number 60, 61 menu is latent radio that two menus. Press F key to open the menu settings,
the 1st menu set to ON, press the F key to exit and save it to open the latent menu

Package include:
- 1x External S meter/SWR/Power Meter
