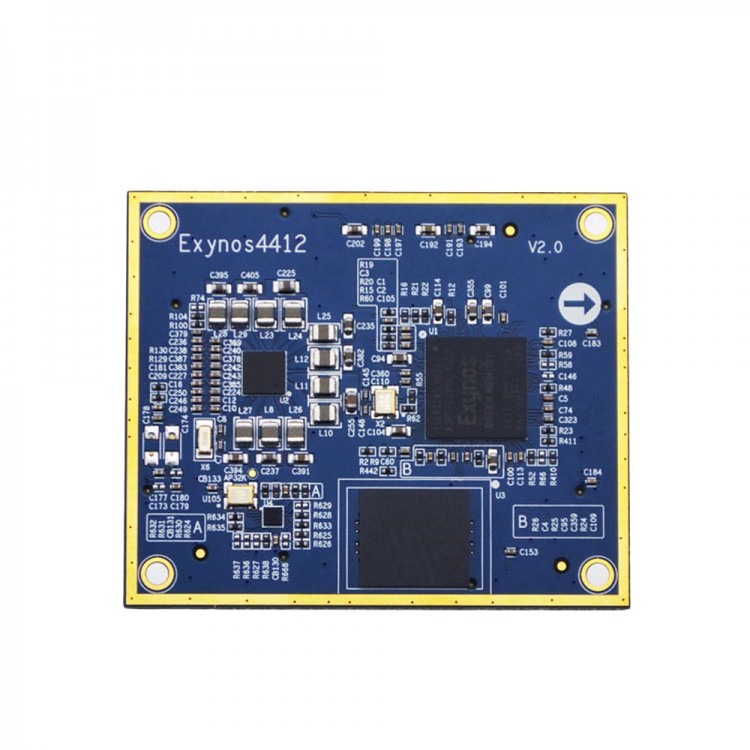

Exynos CortexA9 Development Board iTOP-4412 Core Board POP 1GB+4GB Support Linux-QT Android4.2 Ubuntu
Specification:
- Size: 60mm*70mm
- Height: 0.26cm
- CPU: Exynos4412, quad core Cortex-A9,main frequency 1.4GHz-1.6GHz
- Ram 1GB dual channel DDR3
- Storage EMMC 4GB
- Power management:Low power dynamic Samsung S5M8767 power management
- Working voltage: 2.65V--5.5V (recommended 4.0V)
- System support: Linux-QT/Android4.2/Ubuntu operating system
- USB HOST : Onboard USB3503, leads to high performance HSIC, to achieve the 2 channels HOST USB output
- Pin expansion:up to 320
- Operating temperature: -25 ~ +80 degree C
Package List:
- 1 x Development Board
