Exynos Quad Core Cortex-A9 A8 Android ARM iTOP4412linux2440 Development Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$106.11
  • Price in reward points: 1061 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $103.99 $101.87 $98.68 $94.44 Contact US
Quantity:

Exynos Quad Core Cortex-A9 A8 Android ARM iTOP4412linux2440 Development Board

Specification:

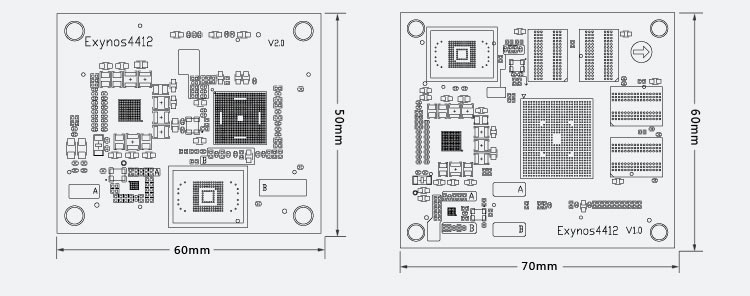

- Size: 50mm*60mm
- Height: Unicom connectors, 0.26cm
- CPU: Exynos 4412, a quad-core Cortex-A9, clocked at 1.4GHz-1.6GHz
- RAM: 1GB dual-channel DDR3
- Power Management:S5M8767 low power dynamic power management, optimal architecture!
- Operating Voltage: 2.65V - 5.5V (recommended 4.0V)
- System Support: Linux-QT / Android4.2 / Ubuntu OS
- USB HOST: Onboard USB3503, leads to high performance HSIC, to achieve two-way USB HOST output
- Pin Expansion: It leads up to 320 PINS, to meet user demand for all types of extensions
- Operating temperature: -25 Degrees to +80 degrees range, the device is working properly, well!
- Storage: 4GB EMMC

Chassis parameters:
- Size: 110mm*190mm
- SWITCH : Power Interface
- RESET: One reset button
- POWER     Power DC power input interface, 5V / 2A power input
- TF Card     A standard TF card interface
- USB Host: 2-way USB Host, support USB2.0 protocol
- USB OTG: 1 channel USB OTG 2.0
- Ethernet port: 10M / 100M adaptive Ethernet port
- PHONE: Support headphone output
- MIC: Support MIC input
- Serial ports: 2-way serial
- A/D: 1 channel
- User Key: Five function keys
- DIP SWITCH: 1
- GPIO: 20PIN (power and ground)
- CAMERA Interface : 1 (Can support two million and 500 million camera)
- WIFI Interface: 1
- HDMI Interface: Standard HDMI v1.4,1080p HD resolution output
- LCD Interface: A total of three, two LVDS interface, an RGB interface
- LCD power switch: 1
- MIPI Interface: 1
- Real-Time Clock: Internal real-time clock with lithium battery back seat, the system time after power is not lost
- BUZZER: 1
- JTAG Interface: 1
- Serial, matrix keyboard, GPS Interface: 1

Package included:

- 1 x Chassis
- 1 x Core board
- 1 x Power Adapter
- 1 x Serial cable
- 1 x USB cable
- 1 x HDMI cable
- 1 x Network cable
- 1 x CD
