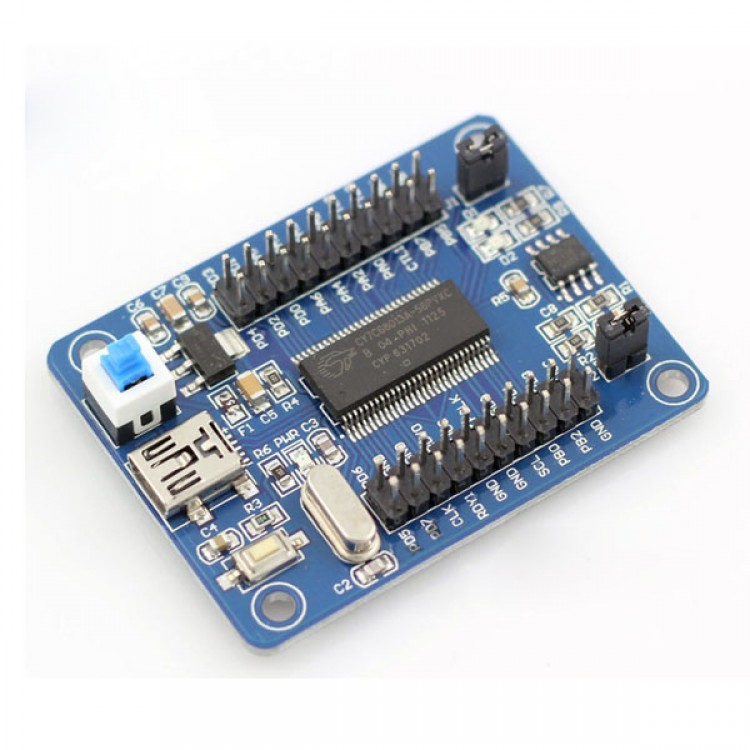

EZ-USB FX2LP CY7C68013A USB Logic Analyzer Core Board+Source Code
Features
- using CY7C68013A-56 chip: low-power version of the enhanced 51-core, 16KB program data areas, frequency of 48Mhz, 480Mbps high-speed transmission protocol standards, in line with USB2.0 specification, backward compatible with USB1.1.
- firmware, EEPROM: Complete in-system programming solution with a USB cable directly to download firmware, on-board to provide 16K (24LC128) a large program memory (EEPROM), used as storage VID / PID and the USB firmware, the program space to meet the CY7C68013A needs.
- all the GPIO pin through the 2.54mm standard leads to very convenient for learners to expand their own design.
- with the appropriate board firmware can be achieved through the core function of the logic analyzer
- PDF format, provide the schematic and the Related information.
Package including
- 1 x CY7C68013A core board
