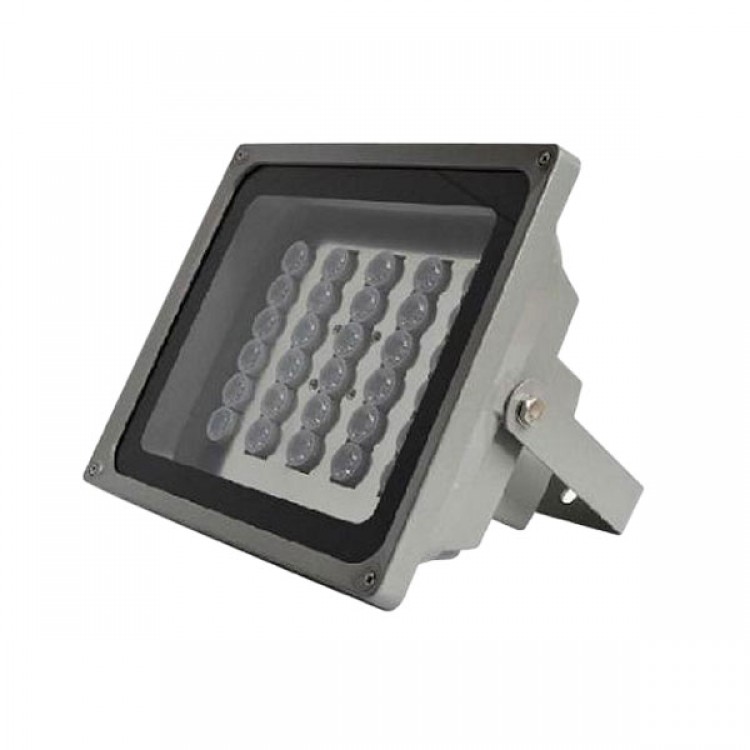

F30-120-A-W Illuminator 120 Degree 40M White Light Illuminator
Description:
- Accurate constant circuit drive develops excellent performance of LED;
- Using high power LED, high efficacy and long service life
- Fill Light for night vision camera
- Indoor/Our door use
- Easy installation

Specification:
- Quantity of LED: 30PCS 1W High Power LED
- Color Temperature : Cool white, warm white
- Luminous Flux :3000lm
- Power Factor:>0.95
- Bean Angle : 30°(standard), other angle optional
- Viewing Distance : 150m
- Day/night Switch :Auto
- Working Voltage: AC110-220V/AC24V/DC12V
- Power consumption :37W
- Wire : If 12VDC/24VAC:45cm(1.4 ft.)
- Plug: AC110-220V  (standard), other voltage optional
- Panel :Tempered glass panel
- Housing:Aluminum Die Casting Housing
- Bracket: Mount bracket
- Working temperature : -40°C TO +50°C
- Protection Level: IP65
- Color: Gray
- N.W:3.35KG
- G.W:3.8KG
- Dimension: 285*248*155mm
- Packing Dimension :350*300*195mm


Model        Bean Angle   Viewing distance
F30/W15AG        15°          180m
F30/W30AG        30°          150m
F30/W45AG        45°          100m
F30/W60AG        60°           80m
F30/W90AG        90°           60m
F30/WC0AG       120°         40m
Actual viewing distance is depended on the performance of camera and lens
