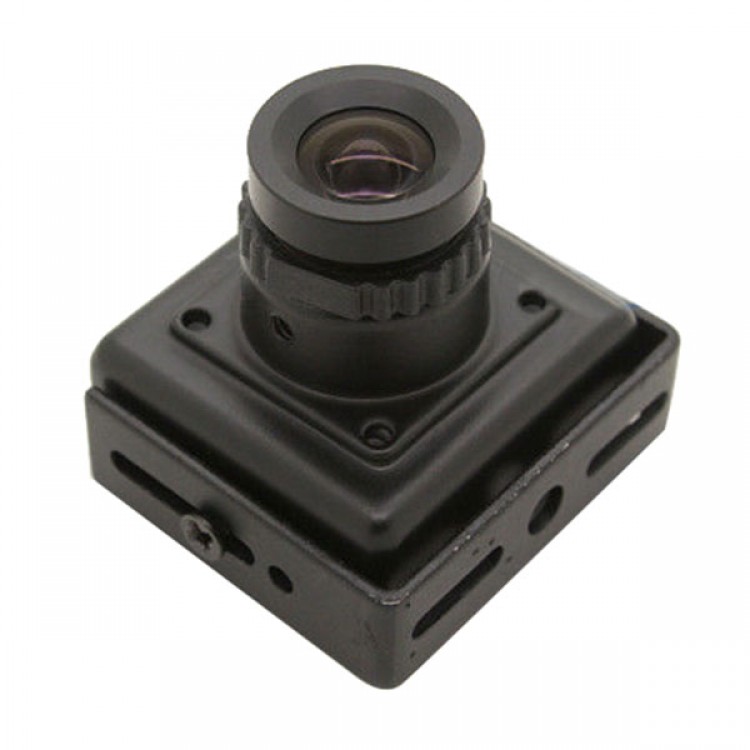

Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark PAL

Availability: In stock, usually dispatched in 1 business day

  • Price:$99.86
  • Price in reward points: 999 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $97.86 $95.87 $92.87 $88.88 Contact US
Quantity:
Buy it now Add cart

You might like

Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC

Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC

$99.86

(0)
Fatshark HAD CCD 420TVL CCD PilotCAM V2 FPV PAL Camera Fat Shark Fatshark

Fatshark HAD CCD 420TVL CCD PilotCAM V2 FPV PAL Camera Fat Shark Fatshark

$79.71

(0)
High Quality 1/3 Inch 3.6mm Lens Fatshark 700TVL CMOS Fixed Mount FPV Camera NTSC PAL for Multicopter

High Quality 1/3 Inch 3.6mm Lens Fatshark 700TVL CMOS Fixed Mount FPV Camera NTSC PAL for Multicopter

$63.16

(0)
Fatshark Super HAD CCD 420TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC

Fatshark Super HAD CCD 420TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC

$79.71

(0)
HD Light Weight Sony 700 Cable CCD 2.8mm Focus Camera for Fixed Wing Multicopter FPV Quadcopter

HD Light Weight Sony 700 Cable CCD 2.8mm Focus Camera for Fixed Wing Multicopter FPV Quadcopter

$29.48

(0)
Feelworld FPV718 7 Inch FPV Monitor Built in Battery Dual 32CH 5.8GHz Diversity Receiver

Feelworld FPV718 7 Inch FPV Monitor Built in Battery Dual 32CH 5.8GHz Diversity Receiver

$243.00

(0)
4.3 Inch Video Door Phone Intercom System Touch Screen Video Phone with Dual Way Intercom

4.3 Inch Video Door Phone Intercom System Touch Screen Video Phone with Dual Way Intercom

$74.53

(0)
Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller with DEVO7 Camera OSD Glasses for FPV

Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller with DEVO7 Camera OSD Glasses for FPV

$782.75

(0)

Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark PAL


 Features:
- Improving clarity, light handling when facing the sun as well as increased low light performance.
- The new V2 camera shares the same cable as the PilotHD and 600TVL CMOS.
- The 25mm format makes this a small and lightweight camera perfect for pan and tilt systems.
- Note: This is a 5V camera and will not work with direct 3 cell voltage

Description:
- Brand Name:Fat Shark
- Item Name:700TVL CCD PilotCAM V2 PAL Camera
- Type: Color
- Signal System: PAL
- Pick Up Device: 1/3” SONY Super-HAD CCD
- Picture Elements: 590(H) X 582(V)/726(H) X 582(V)
- Resolution: 700TV Lines
- Min Illumination: 0.01 Lux/ 0.08 Lux
- Scanning System: 2:1 Interlace
- Sync System: Internal
- S/N Ratio: More than 55dB
- Gain Control: Auto (FPV tuned)
- White Balance : Auto (FPV tuned)
- Lens: 3.6mm (no IR)
- Video output: 1.0V p-p (75 BNC)
- Power Supply: 3.3 – 5V DC
- Power Consumption: 100mA/ 120mA
- Dimensions: 27 X 25 X 13 mm (+14mm lens extrude)
- Weight : 31g
- Operating Temp: -10 to 50C
