FEELWORLD 7 Inch FPV Monitor LED TFT HDMI Monitor FW689-HD Filter for Video Camera 5D III
This 7.0" Pro HD LED Monitor is designed to be used as an external video display, allowing you to step back from the camera while still being able to frame and catch the action without having to look through the cameras built-in viewfinder.
Features:
- PEAKING FILTER (Focus Assist) is used to assist the camera operator to focus on the desired object when taking photos or videos. There will be white color on the screen where sharp edges appear.
- Canon 5D Mark II mode, camera mode is recording, full display on monitor, no delay, no deform
- Check field (Red, Green, Blue, Mono, Color)
- Screen Marker (80%, 85%, 90%, 93%, 96%)
- Cross the screen center mark
- Image flip U/D, L/R
- Aspect Ratio Setting 16:9 or 4:3
- 16:9 or 4:3 aspect ratio setting
- Brightness, Contrast Ratio, Tint, Saturation and color temperature adjustment

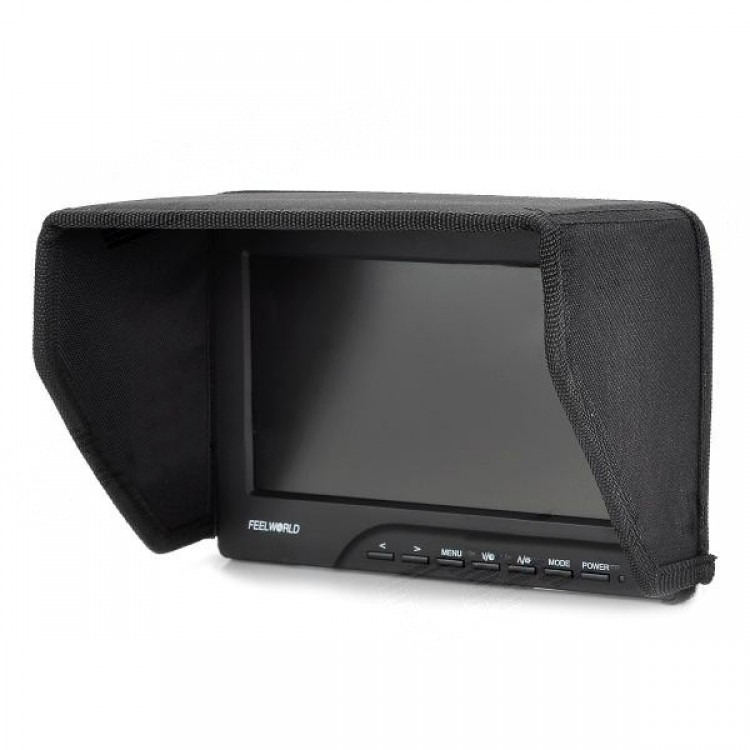

- Including removable high quality sun shade

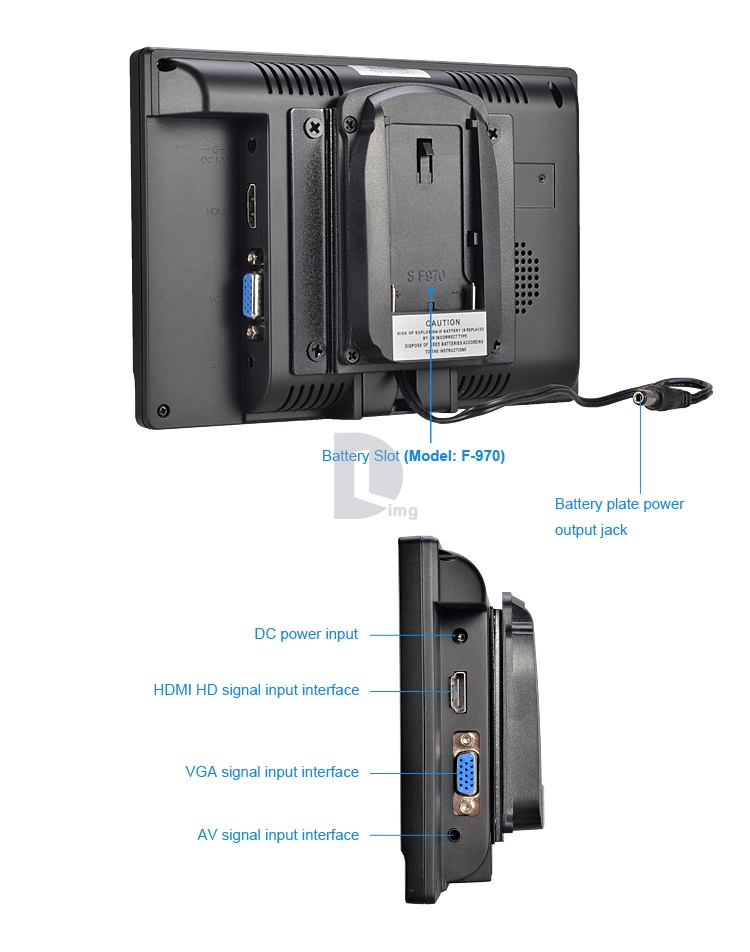

- Battery Slot (Model: F-970): Compatible Sony battery F970 F960 F950 T930 F770 T750 F730 F570 F550 F530 QM91D OM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70
Specification | |
---|---|
Display panel size |
7.0 inch 1152000 Pixels |
Panel type |
TFT LCD |
Resolution |
800*480 |
Resolution up to |
1920x1440 |
Brightness |
400cd/m² |
Contrast |
500:1 |
Viewing angle |
70°/70° (L/R); 50°/60° (U/D) |
Video signal input range |
0.7~1.4Vp-p/75Ω |
Support input frequency |
H: 30~60kHz V:50~75Hz |
HDMI Support format |
480i, 480p, 576i, 576p, 720p, 1080/50i, 1080/60i, 1080/50p, 1080/60p |
Speaker output consumption |
≥1W/8Ω |
Video color system |
PAL-4.43; NTSC-3.58 |
Backlight |
LED |
Signal input channel |
HDMI, VGA, VIDEO1, VIDEO2, AUDIO |
Input power voltage |
DC6-24V |
Power consumption |
≤8W |
Standby current |
≤50mA |
Working temperature |
-20~55°C |
Storage temperature |
-30~65°C |
Size |
184 x 130 x 52mm |
Net weight |
455g (only the monitor) |
Power adapter |
Input: AC100V-240V, 50/60Hz; Output: DC12V, 1.5A; Plug Type: US |
