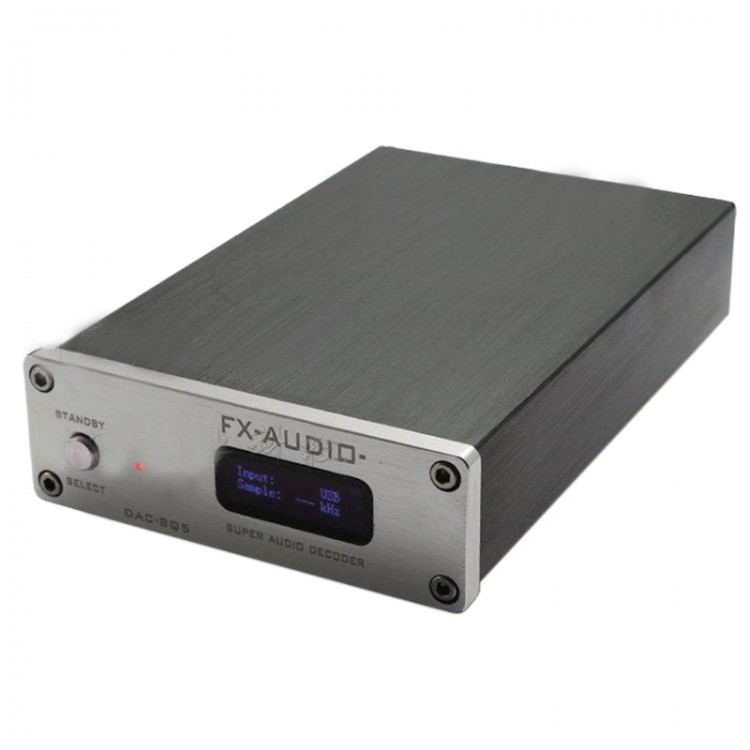

FEIXIANG FX-AUDIO DAC-SQ5 USB HIFI 2.0 Audio Decoding Amplifiers DAC Fiber Coax USB Input PCM1794

Availability: In stock, usually dispatched in 1 business day

  • Price:$80.99
  • Price in reward points: 810 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $79.37 $77.75 $75.32 $72.08 Contact US
Quantity:

FEIXIANG FX-AUDIO DAC-SQ5 USB HIFI 2.0 Audio Decoding Amplifiers DAC Fiber Coax USB Input PCM1794

Description:

This decoder uses top chip PCM1794A, AK4113 reception, VT1729USB receiving chip. It supports frequency 44.1K-192K, I/V conversion uses LME49720NA, LPF adopts OPA2604, which is well-tuned, sounds great with rich sense of music. Using the latest state-wide OLED display, reflecting the premium style in a small volume.

Performance parameters:
- Input: optical, coaxial, USB
- Output: 2-channel stereo (4V RMS)
- Sampling rate: 16BIT-24BIT / 44.1K-192KHZ (optical, coaxial), 16BIT / 44.1K-192K 24BIT / 44.1K-96K (USB)
- Frequency response: 20HZ-20KHZ
- Dynamic range: 110DB
- Harmonic distortion: less than 0.004% (20HZ-20KHZ)
- Audio SNR: 110DB
- Channel isolation: more than 99DB
- Dimensions: 147X97X32mm
- Machine weight: 0.4KG
- Appearance of the process: Panel Drawing
- Power supply voltage: DC12V 1A
- Power: 2W
- Color: Silver

Features:
- New PCM1794A chip
- HIFI I/V conversion + LPF circuit
- WIMA film capacitor
- ERO capacitor
- FC series electrolytic capacitor
- OPA2604+LME49720
- Active crystal oscillator

Note: This product is without power supply

Packing list :
- DAC-SQ5 × 1
- USB cable × 1
