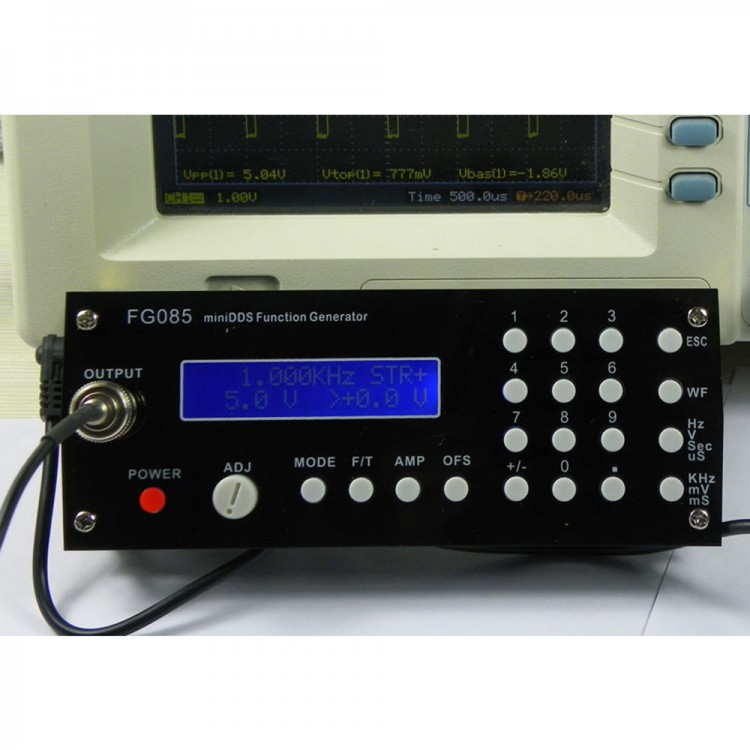

FG08503K Signal Waveform Generator Electronic DDS Digital Synthesis Function DIY Kit with Panel
  • FG08503K Signal Waveform Generator Electronic DDS Digital Synthesis Function DIY Kit with Panel
  • FG08503K Signal Waveform Generator Electronic DDS Digital Synthesis Function DIY Kit with Panel
  • FG08503K Signal Waveform Generator Electronic DDS Digital Synthesis Function DIY Kit with Panel

  • SKU:49098
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 4
  • Price:$40.92
  • Price in reward points: 409
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $40.10 $39.28 $38.06 $36.42 Contact US

FG08503K Signal Waveform Generator Electronic DDS Digital Synthesis Function DIY Kit with Panel

Specification:

- Output signal types: sine, square, triangle, positive and negative sawtooth, positive and negative staircase, user-defined arbitrary waveforms, and servo control signal
- Frequency range: 0 - 200KHz (sine)
- Frequency resolution: 1Hz
- Frequency accuracy: 0.149Hz (when F> 40Hz time), 0.000596Hz (when F <= 40Hz time)
- Cycle Resolution: 1ms
- Amplitude range: 0 - 10V pp
- Amplitude accuracy: 0.1V
- DC offset range: -5V - + 5V
- DC offset Accuracy: 40mV
- Waveform memory depth: 256 bytes
- Maximum sample rate: 2.5Msps
- Trigger Input Level: High 3.5V (minimum), low 1.5V (maximum)
- When the trigger waveform output delay: less than 5 subtle
- Synchronous output: TTL level
- Output Impedance: 50 ohm
- Power supply voltage: 15V DC
- Supply Current: <150mA (no load)
- Net Weight: 100g

The main operating modes:
- Fixed-frequency mode (CW)
- Sweep mode (SWEEP)
- Servo signal patterns (SERVO)

Operating Example:
- The output frequency is set to 5KHz, key operation: [F / T] [5] [KHz]
- The output amplitude is set to 3V For peak to For peak, key operation: [AMP] [3] [V]
- The DC offset is set to -2.5V, key operation: [OFS] [+/-] [2] [5] [V] [.]

Package included:
- 1 x FG08503 DDS Signal Waveform Generator With Panel kit
- 1 x Power adapter
- 1 x Probe
