Finished HIFI Gold Seal Tube MJE15024 MJE15025 Amplifier Base on Marantz HDAM Circuit Multi Channel Amplifier

Finished HIFI Gold Seal Tube MJE15024 MJE15025 Amplifier Base on Marantz HDAM Circuit Multi Channel Amplifier

 Features:
1.  Full symmetrical line integrated amplifier.

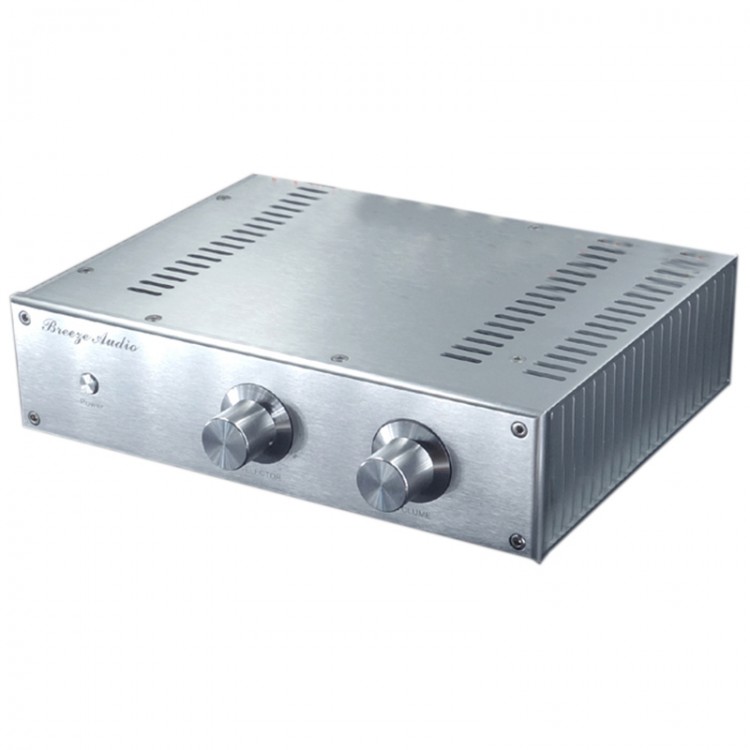

2.  Whole aluminum alloy casing with exposed air-cooling structure, fine brushed aluminum chassis.
3.  2 solid all-aluminum knobs, the left is audio input selector knob and the right is the volume control knob
4.  Adopted Japan ELNA-AUDIO sound special capacitors, sound sweet nature, analytical level efforts are in place.
5.  Om ron relay protection circuit, so that the amplifier and speakers are working in a safe condition at any time.
6.  3 channel lossless relay signal switching circuit can handle multiple simultaneous audio inputs.
7.  3-channel audio signal input, it can easily be connected with multiple sources at the same time easy to use.
8.  2 channel audio outputs with copper crystal column speaker wiring, without blacken and oxide.
9.  250W power OFC no break toroidal transformer for power amplifier to provide abundant energy.

Parameters:
- Output Power: 80W + 80W (8 ohms)
- Output Power: 120W + 120W (4 ohms)
- Frequency response: 15HZ-50KHZ
- Harmonic distortion: less than equal to 0.005% 20W / 1KHZ
- Load Impedance: 2-16 ohms
- SNR: 105DB
- Input Impedance / Sensitivity: 47KOHMS / 220MV
- Input: RCA
- Power: AC220V / 50-60HZ
- Weight: approximately 6 kg
- Size:300(W)X80(H)X211(D)

Package included:
- 1 x HIFI Amplifier Base on Marantz HDAM Circuit Multi Channel Amplifier
