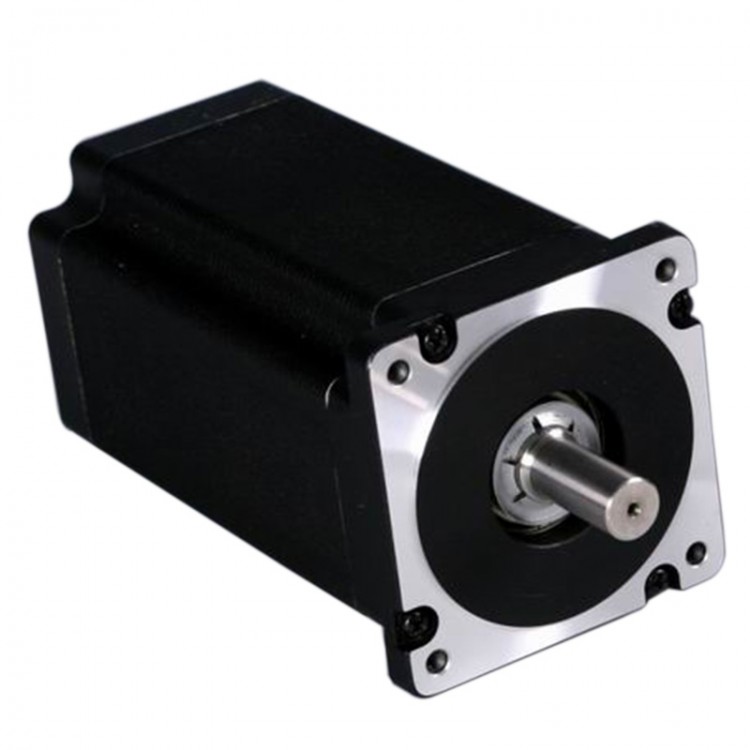

• FL86STH118-4208A Hybrid Stepping Motor 4.2A 85kg.cm 1.8 Degree CNC Stepping Motor

FL86STH118-4208A Hybrid Stepping Motor 4.2A 85kg.cm 1.8 Degree CNC Stepping Motor

Availability: In stock, usually dispatched in 1 business day

  • Price:$128.01
  • Price in reward points: 1280 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $125.45 $122.89 $119.05 $113.93 Contact US
Quantity:

FL86STH118-4208A Hybrid Stepping Motor 4.2A 85kg.cm 1.8 Degree CNC Stepping Motor

Specification:
- Step Angle: 1.8 degree
- Current: 4.2A
- Resistance: 1.2Ohm
- Inductance: 6.5mH
- Holding Torque: 85kg.cm
- Number of Leads: 8
- Rotor inertia: 2.7kg/cmxcm
- Weight: 3.8kg
- Detent torque: 2.4kg.cm
- Body Length: 118mm
-  Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Dielectric strength:820VAC,1s, 3mA
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Maximum radial load: 220N
- Maximum rotor load: 60N

Package included:
- 1 x Stepping Motor
