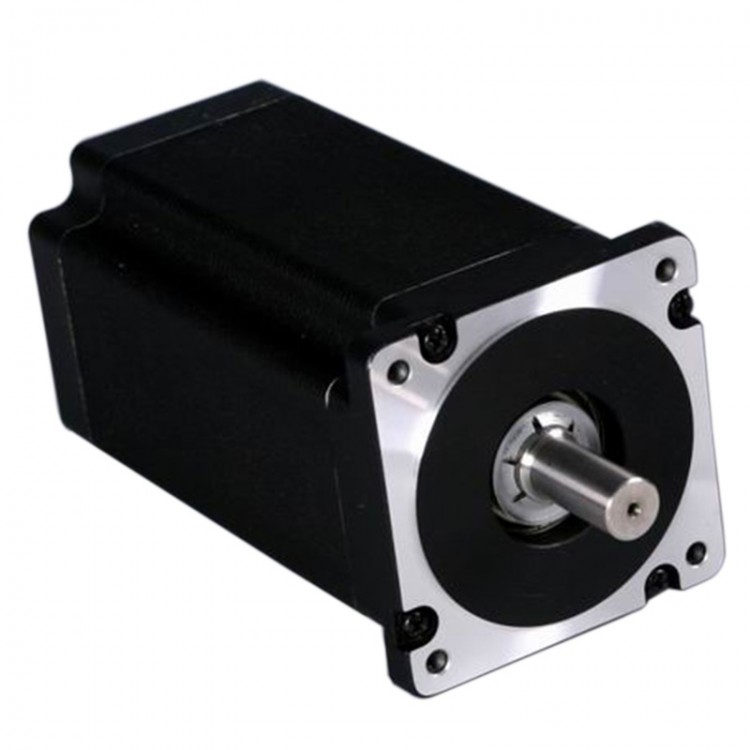

• FL86STH80-4208A Hybrid Stepping Motor 4.2A 45kg.cm 1.8 Degree CNC Stepping Motor

FL86STH80-4208A Hybrid Stepping Motor 4.2A 45kg.cm 1.8 Degree CNC Stepping Motor

Availability: In stock, usually dispatched in 1 business day

  • Price:$102.55
  • Price in reward points: 1026 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $100.50 $98.45 $95.37 $91.27 Contact US
Quantity:

FL86STH80-4208A Hybrid Stepping Motor 4.2A 45kg.cm 1.8 Degree CNC Stepping Motor

Specification:
- Step Angle: 1.8 degree
- Current: 4.2A
- Resistance: 0.8Ohm
- Inductance: 3.5mH
- Holding Torque: 45kg.cm
- Number of Leads: 8
- Rotor inertia: 1.4kg/cmxcm
- Weight: 2.3kg
- Detent torque: 1.6kg.cm
- Body Length: 80mm
-  Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Dielectric strength:820VAC,1s, 3mA
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Maximum radial load: 220N
- Maximum rotor load: 60N

Package included:
- 1 x Stepping Motor
