Flycolor Raptor 390 Tower 4 in 1 ESC FPV F3 Flight Controller Integraetd OSD Power Distribution Board for Quadcopter Drone

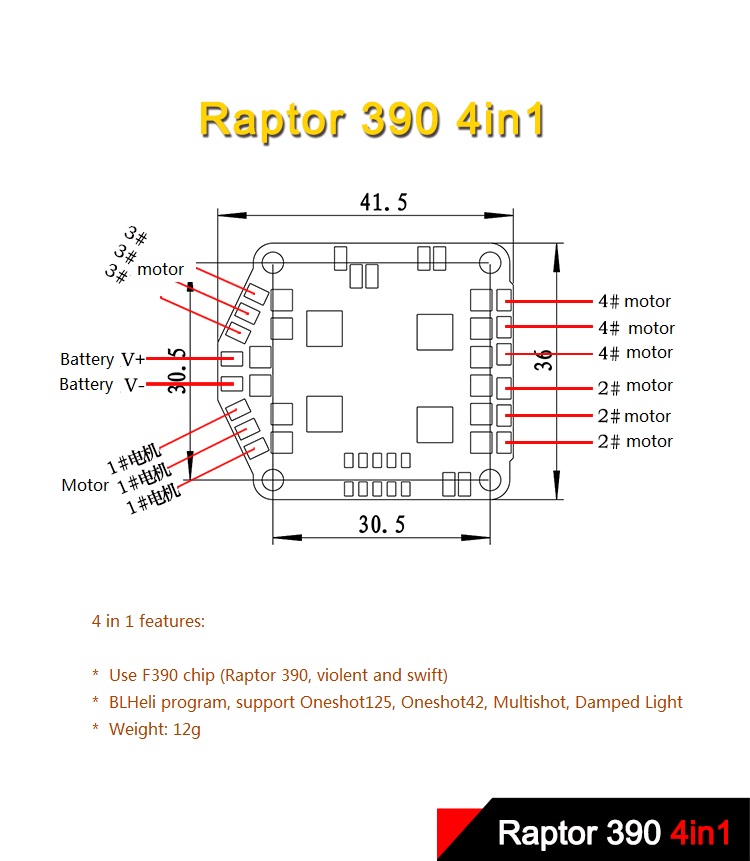

4 in 1 ESC 30A BLHeli :

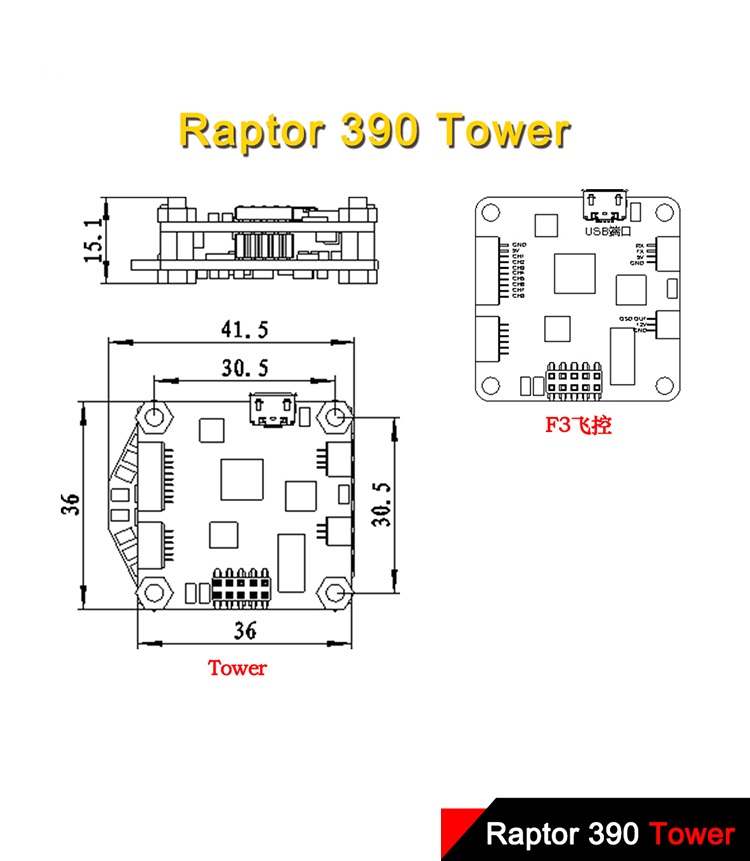

- Size: 41.5x36mm
- Mounting hole: 30.5x30.5mm
- Use F390 chip (Raptor 390, violent and swift)
- BLHeli program, support Oneshot125, Oneshot42, Multishot, Damped Light
- Weight: 12g

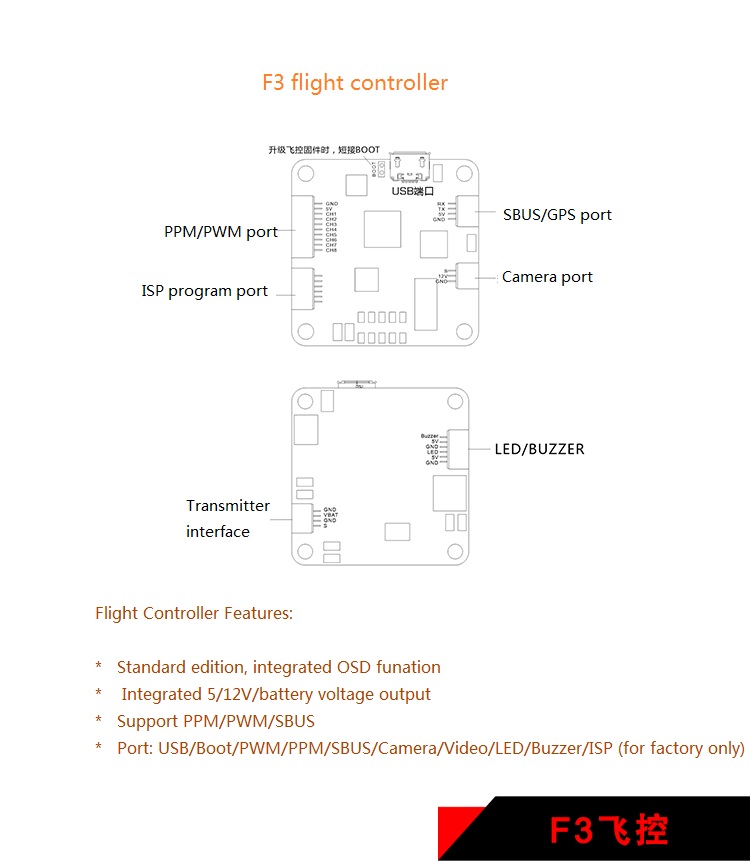

F3 6DOF Flight controller:
- Size: 36mmx36mm
- Mounting hole: 30.5x30.5mm
- Standard edition, integrated OSD funation
- Integrated 5/12V/battery voltage output
- Support PPM/PWM/SBUS
- Port: USB/Boot/PWM/PPM/SBUS/Camera/Video/LED/Buzzer/ISP (for factory only)

Feature:
Using C8051F390 MCU ,pipelined 8-bit C8051 core with 50 MHz maximum operating frequency.Using dedicated 3in1 drivers, faster response, small size&lighter in weight.

ESC maximum speed is limited to 400k eRPM.

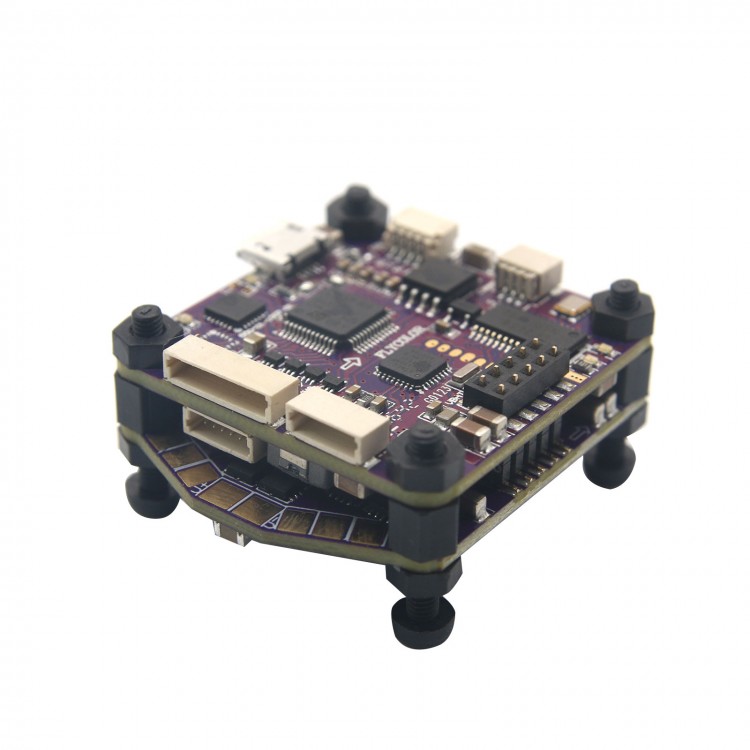

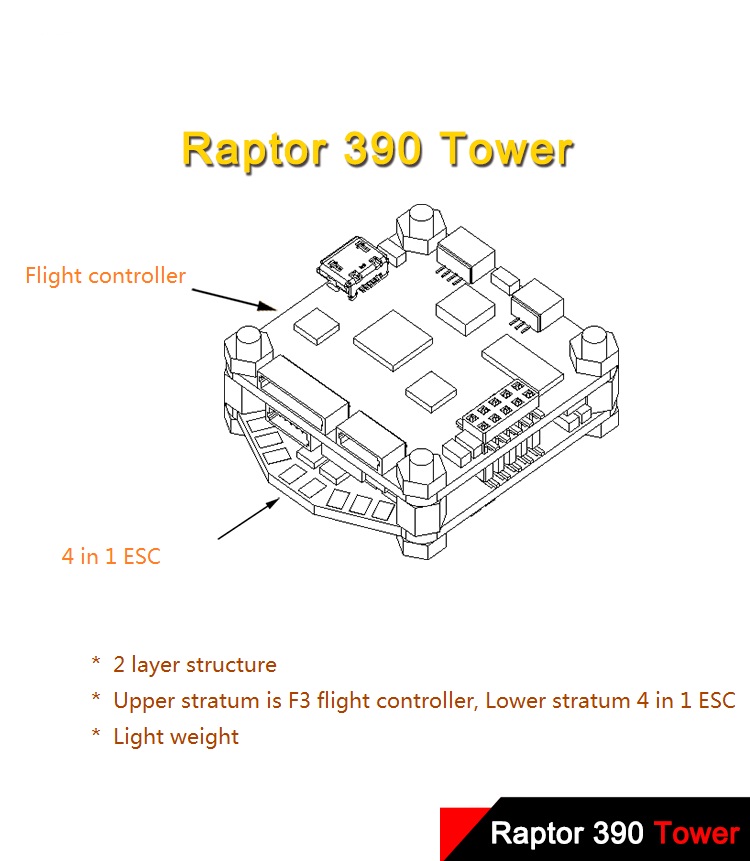

Two layers tower structure between the 4in1 ESC and FC with quick pin connection. The interference caused by the signal transmission is reducedto the maximum extent, and the flight is more stable, make the whole weight lighter, and the installation is faster and more convenient;
Standard F3 flight controller, Supports PPM, PWM and SBUS remote control / receiving mode FC integrated OSD, also integrated 5V, 12V, and battery voltage (VBAT), Easy power supply to Image transmitter, camera, buzzer, LED and otherperipheral ;

provided all kind of cables for connectors on FC , to give you an unprecedented

Installation:
- Connect computer via USB on the flight controller, then can upgrade ESC software directly or adjusted the ESC settings directly ;
- Use BLHeli open-source firmware, can update the firmware or write setup via signal cable; Using “Damped light” mode , it improves the throttle respo-nse, when reducing the throttle amount, the Motors slow down rapidly. It strengthens the stability and flexibility of multi-rotors, quite suitable for QAVs.
- There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
- Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5-25us). The input signal is automatically detected by the ESC upon power up.

Package included:
- 1 x Raptor 390 4 in 1 30A ESC
- 1 x F3 6DOF Flight controller
- 4 x Nylon spacer M3*5+6
- 4 x Nylon Nut M3
- 8 x Nylon screw M3*12
