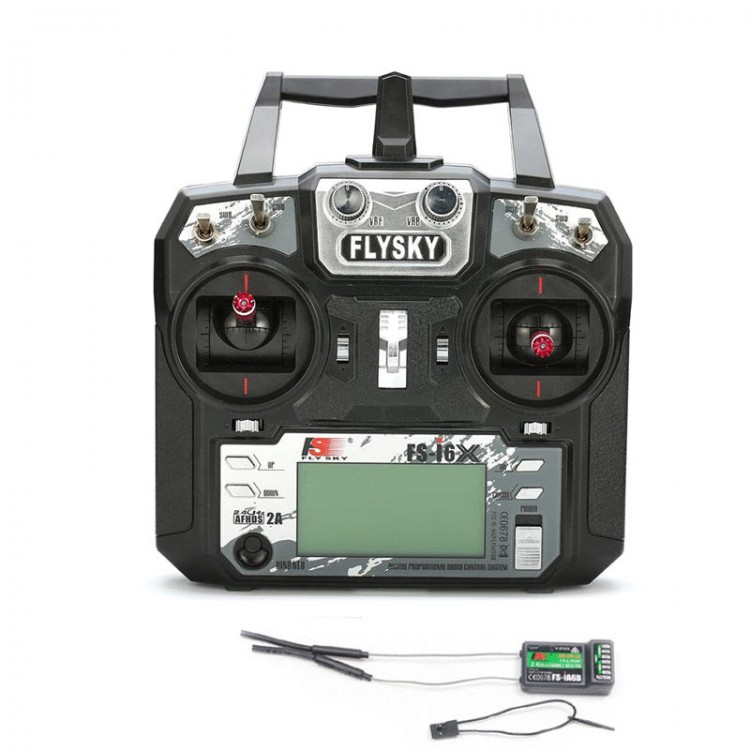

Flysky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6B Receiver for Drone
  • Flysky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6B Receiver for Drone
  • Flysky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6B Receiver for Drone
  • Flysky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6B Receiver for Drone
  • Flysky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6B Receiver for Drone
  • Flysky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6B Receiver for Drone

  • SKU:54132
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$59.90
  • Price in reward points: 599
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $58.70 $57.50 $55.71 $53.31 Contact US

Flysky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6BB Receiver for Drone


Ship Mode 2 one as default , if you need mode 1, leave us a message!!

Mode 1-- Throttle stick on right
Mode 2-- Throttle stick on left


Package Included:
1x Flysky FS-i6X Transmitter
1x Flysky FS-IA6B receiver

FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6, you could choose 7-10ch in setting)

- Model Type: Fixed-Wing/Glider/Helicopter
- RF Range: 2.408-2.475GHz
- RF Power: < 20dBm
- RF Channel: 135
- Bandwidth: 500KHz
- 2.4GHz System: AFHDS 2A / AFDHS
- Modulation Type: GFSK
- Stick Resolution 4096
- Low Voltage Warning: < 4.2V
- DSC port: PS/2 Port PPM
- Chargeable: No
- Antenna Length: 26mm (Dual Antenna)
- Weight: 392g
- Power: 6V DC 1.5AA*4
- Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
- Size: 174x89x190mm
- On-line Update: Yes
- Color: Black
- Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

X6B i-BUS Specifications:
- Brand Name: Flysky
- Item: X6B i-BUS Receiver
- Channels: 6(PWM), 8(PPM), 18(i-BUS)
- Model Type: Multi-Totor
- RF Range: 2.408-2.475 GHz
- Brand Wigth: 500KHz
- Number of bands: 135
- RF Power: No more than 20 dBm
- RX Sensitivity: -95dBm
- 2.4GHz protocol: AFHDS 2A
- Modulation Type: GFSK
- Stick resolution: 1024
- Low voltage alarm: Yes
- DSC port: PPM/PWM/i-BUS
- Antenna Length: 93mm (Dual Antenna)
- Power input: 4.0-8.4V
- On-line Update: Yes(Wireless)
- Range: >300m
- Weight: 4.5g
- Size: 36*22*7.5mm
- i-BUS Port: Yes
- Certificate: CE0678, FCC ID: N4ZX6B00

Features:
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.

Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.

Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.

Unique ID Recgnition System
Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
