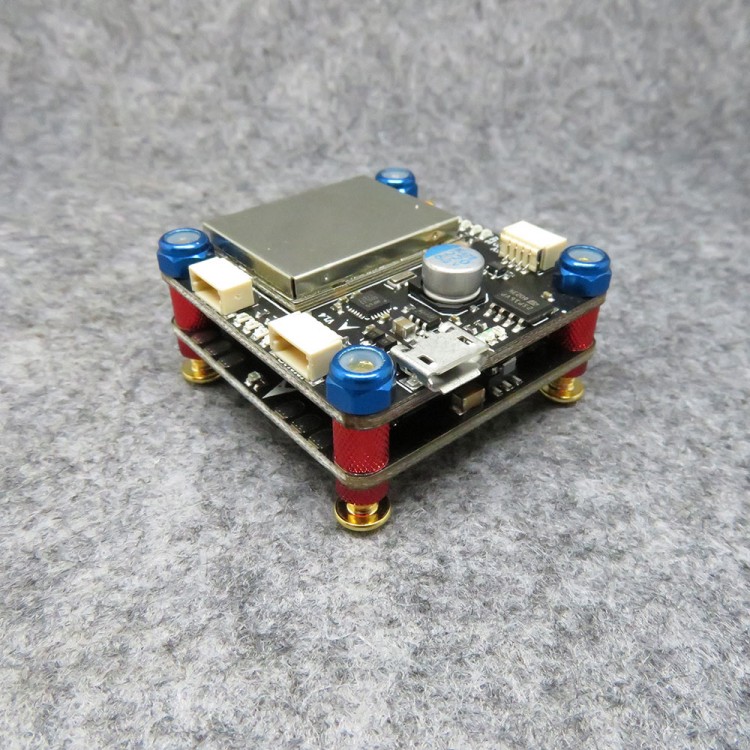

Flytower F1 FPV Flight Controller Board Integrated OSD BEC 4 in 1 BL20A ESC VTX for Drone Quadcopter
The Flytower F1 board designed based naze32 fc and was highly integrated with OSD,BEC,4 in 1 BL20A ESC and VTX(Video & Audio).It gives you all the features what you need in FPV, which makes you easily get into FPV racing.Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, and more.
- Practical - Easy to access connectors
- Configurable - Choose to use connectors
- Stackable - Mount our 4 in 1 ESC
- Compact - Only 36x36x13mm.
- Weight - 23.3 grams and 2 layout boards
- Professional - Symmetrical, Neat and Tidy and Easy to install in any racing drone
- 36x36mm board with 30.5mm mounting holes
- STM32F103CB CPU, 72Mhz inc FPU
- High-Capacity Flash
- Use MPU6500 as accelerometer & gyro
- MicroUSB socket
- 1x 4pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
- The on-board pins are easily connected to our next 4 in 1 ESC &PDB board
- Internal VTX (40CH) (25/200 / 400MW adjustable power video transmission)
- 1x 4pin JST-SH sockets with BUZZER & WS2811 RGB LED
- 1x 4pin JST-SH socket for SWD debugging
- 1x 4pin JST-SH socket for Video & Audio transmission
- 1 IPX sockets eeay connet the external antenna
- 4x 3 Pad for motor output
- 1x2 Pad for batter in easy solder
The Flytower F1 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.
The Flytower F1 runs Cleanflight (NAZE) and Bataflight (NAZE) which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
Tiny and lightweight
The Flytower F1 has a standard L*W*H=36x36X13mm form-factor with 30.5mm mounting holes and weighs just 23.3 grams.
On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.
Full support for OneShot ESCs for easy PID tuning and a sharper response.
Broad RC receiver Support
Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM,receivers. No external inverters required (built-in).
Dedicated output for multi-colored LED strips - great for FPV racing, line-of-sight flying orientation and night flying.
Battery monitoring ports for voltage and current.
Buzzer port for audible warnings and notifications
- Flytower F1 FC Board * 1
- 4 in 1 Esc Board *1
- M3*15 Scews *4
- M3*5.2MM Aluminum Standoff *4
- M3*2.5MM Aluminum Standoff *4
- M3 self-locking Nut *4
- RC IN (PPM/SUBS) cable *1
- RC IN (DSM2) Cable *1
- Camera Transmitter cable *1
- IPX-SMA Male Antenna Adaptor *1
