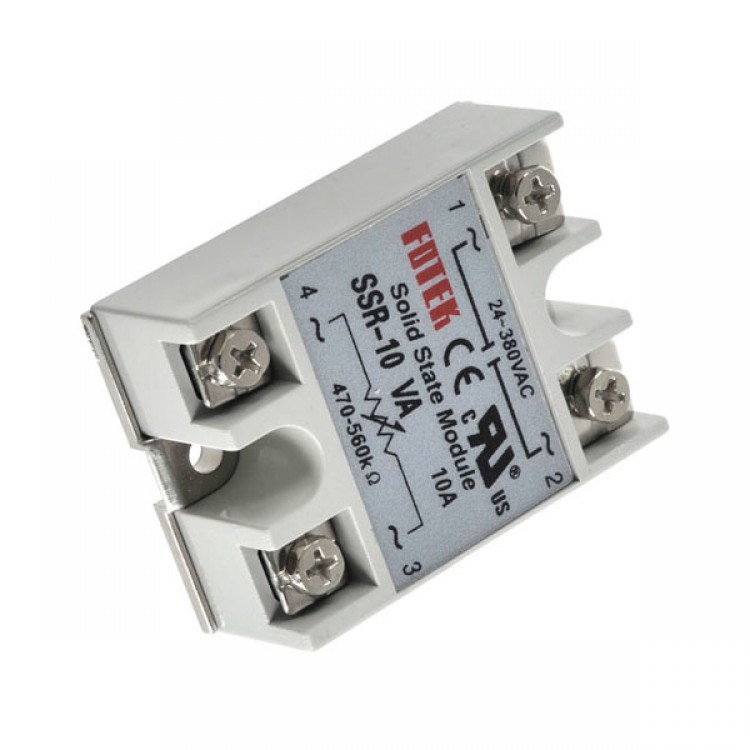

SSR-10VA Relay Solid State Relay
Features:
- past "ISO9001:2000"Quality System.
- CQC 3.after-sale service
- with a switch no spark,no noise,high swithing speed.

Specfications:
- Size:60*45*23.5 mm
- Control method:VA Solid Booster
- Control voltage:External control to adjust potentiometer 470KΩ-560KΩ/2W
- Load voltage:24V-380VAC  H:90-480VAC
- Output voltage drop:1.5Vmax
- off Leakage Current:5mA max.f  no built-in RC absorption circuit 1mA
- Inulation resistance:100MΩ min.(at 500VAC)
- Dielectric Strength:4000Vrms Input-Output    2500Vrms Input,output-Cooling plate
- Operating Temperature:-20°C-80°C(Non-condensing and freezing)
