FPV 3 axis DSLR Brushless Gimbal Glass Fiber w/ 3pcs Motor & 32 bit 3 Axis AlexMos Control Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$379.90
  • Price in reward points: 3799 Reward Points: 38
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $372.30 $364.70 $353.31 $338.11 Contact US
Quantity:

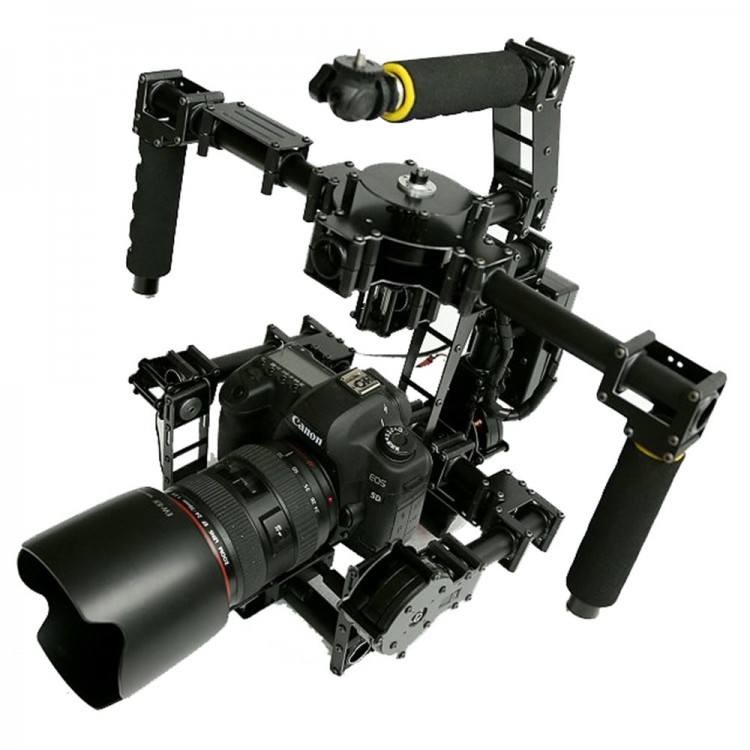

FPV 3 axis DSLR Brushless Gimbal Glass Fiber w/ 3pcs Motor & 32 bit 3 Axis AlexMos Control Board

DSLR gimbal descriptions:
- FPV 3 axis DSLR Handle Gimbal glass Fiber Stabilized Camera Mount PTZ
- Model:TZT-5D3
- Suitable for 5D2 5D3 D800 DSLR Camera
- 3 Axis design
- Recommended 3 pcs GBM5208-200T
- Battery:2-3S,Charger:B6 charger(sku:26951)
- Net weight: 1300g
- Size:45*23*37cm

Motor description:
- Item no.: BGM5208-200
- 12N14P
- Wire: 0.24mm
- Turn: 200 T
- Motor size: Ф63*24
- Shaft: hollow  shaft/ Ф7.0 out, Ф5.0 inner
- Ω Ri :17.2ohm
- Weight: 180g

Basic functions of the controller:
- 32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axes stabilization.
- Allows camera control with the RC or analog joystick.
- Use several switchable profiles for different modes of operation
- Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
- Battery voltage monitoring, compensating voltage drop in the PID-regulator.
- Low battery alarm (output to 5V active buzzer).
- Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
- Can supply up to 1A current for external devices on the 5V power line.
- Dedicated UART-socket to connect optional Bluetooth module
- Reverse-polarity protection, overheat and overcurrent protection
- USB interface for the PC connection, to configure, control and upgrade firmware.
- Graphical user interface to manage the settings. Windows / OS X / Linux versions.
- Control through the Serial-protocol using dedicated API.
- Improved attitude estimation algorythms
- Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and  will make stable work in any frame position.

Note: This product is not assembled, and you need to debug it by yourself before usiing!!!!!!!

Package includes:(Not Assembled No Debugging)
- 3 axis brushless gimbal frame kit x  1
- DYS Brushless Gimbal Motor x 3
- 32 bit AlexMos control board x 1
- Gimbal Control Box Case  x  1
- FPV Monitor Mounting Base  x  1
- Gimbal Hot Shoe   x  1
