Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $82.31 | $80.63 | $78.11 | $74.75 | Contact US |

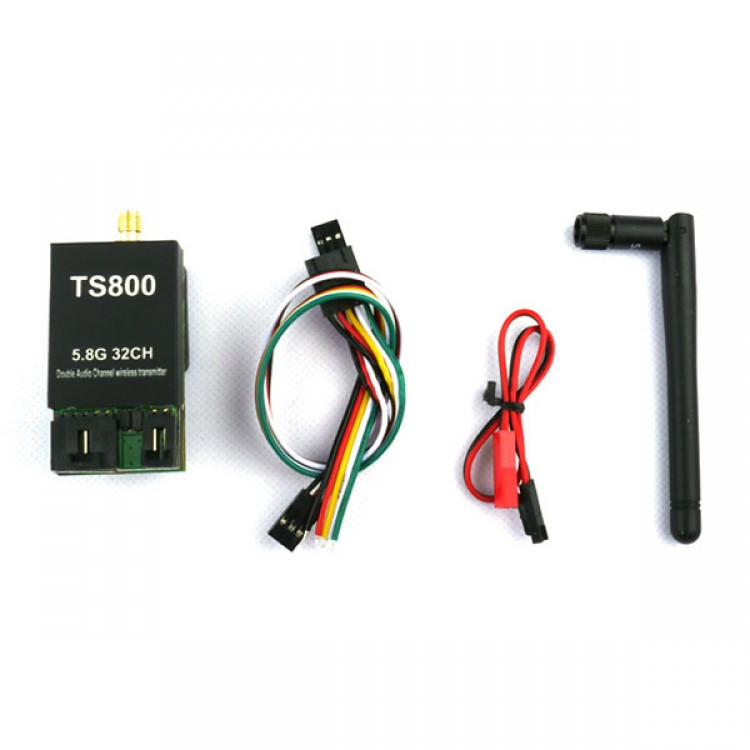

FPV 5.8G 32CH LED Channel Display 1500mW AAT Compatible A/V Transmitter | RP-SMA | jack
Special Features:
- Integrated with 6.5M & 6.0M audio input channel, support popular AAT systems available on market.
- LED channel number display.
- One-touch channel switching function integrated (receiver with same function is needed), you can switch the working channel of both the RX & TX by one touch remotely from your transmitter. (receiver is NOT included)
- Wide range power input, support 2-6S power input.
Feature:
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side ) See connector type diagram
- Working channel number: 32
- Power input: 2-6S Lipo, wide range power input
- Wrong polarity protection function: Yes
- Cooling method: active cooling, cooling fan
- Working currency: 800mA @ 12V
- Audio system: 6.0M/ 6.5M
- AAT input support: Yes
- Remote channel switching function: Yes (same function receiver is required)
- Video Band width: 8M
- Weight: 50g
- Dimension: 54 x 32 x 26.5 (excluding antenna)
