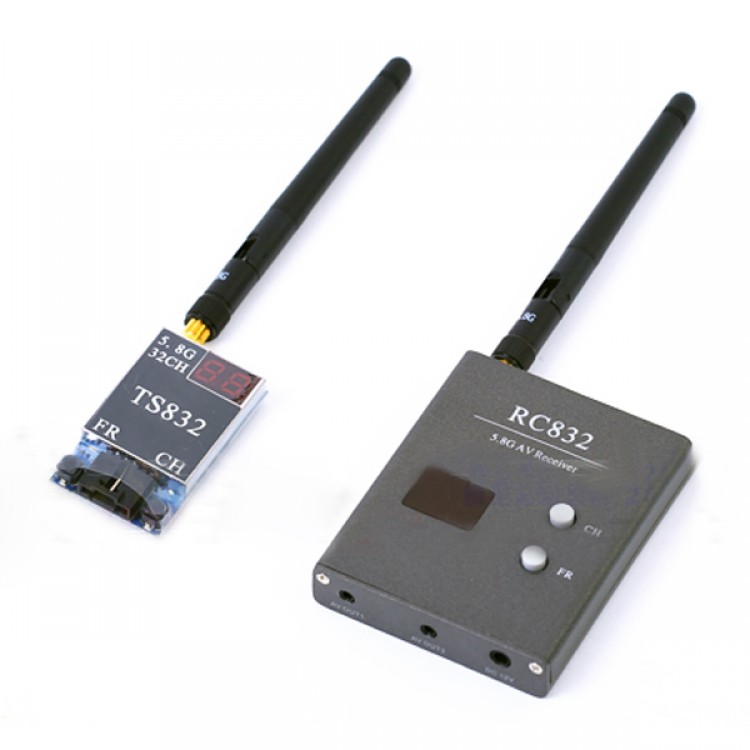

FPV 5.8G 600mW A/V Transmitting/Receiving System TS832 + TS832 32 Channel Wireless Audio/Video System

Availability: In stock, usually dispatched in 1 business day

  • Price:$123.90
  • Price in reward points: 1239 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $121.42 $118.94 $115.23 $110.27 Contact US
Quantity:

FPV 5.8G 600mW A/V Transmitting/Receiving System TS832 + TS832 32 Channel Wireless Audio/Video System

Description:
- RX/TX;RP-SAM jack
- Antenaa:RP-SMA plus

Receiver RC832 parameters
- Operating frequency: 5.8 GHz
- Launch frequency point: 32 points
- Input voltage: 12 v
- Max working current: 200 ma
- Antenna impedance: 50 Ω
- Antenna connector: receiving and sending module end RP - SMA antenna jack end RP - SMA plus
- 2 db antenna gain
- Video impedance: 75 Ω
- Automatic video formats: NTSC/PAL
- Dimension: 80 * 65 * 15 mm
- Receive net weight: 85 g

Transmitter TS832 parameters
- Transmission frequency: 5.8 G
- Transmission power: 600 mw
- Launch frequency point: 32 points
- The input voltage: 7-16 v
- Antenna connector: launch module end RP - SMA antenna jack end RP - SMA plus
- 2 db antenna gain
- Work current :220 ma / 12 v
- Working temperature: - 10-85 ℃
- Automatic video formats: NTSC/PAL
- Video bandwidth: 8 m
- Audio bandwidth: 6.5 M
- the net weight: 22 g
- Dimension: 54 * 32 * 10 mm

Package included:
- 1 x RC832 Receiver
- 1 x TS832 Transmitter
- 2 x 5.8G 2db Antenna
- 3 x cables
