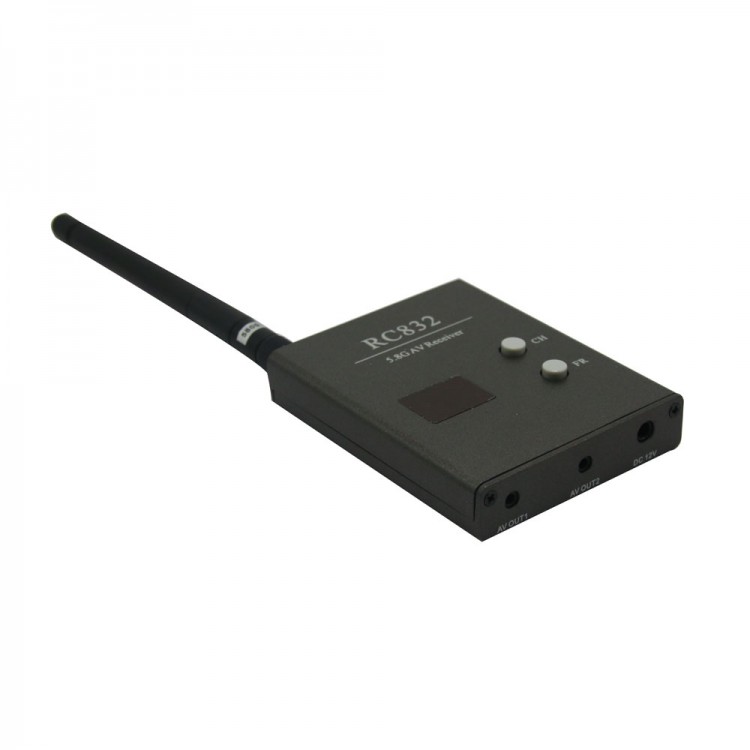

FPV 5.8G A/V Receiver (RX) W/ LED Channel Display RC832 32CH RP-SMA RC832

FPV 5.8G A/V Receiver (RX) W/ LED Channel Display RC832 - 32CH Edition RP-SMA, jack
Part No.:RC832
Features
-THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.

Features:
• 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
• Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
• Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
• Power off memory: Replay the very last frequency band and channel
• Independent video and audio signal outputs

Product Details
-FPV 5.8G A/V Receiver (RX)  W/ LED Channel Display RC832 - 32CH Edition | RP-SMA

- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side)
- Power input: 12V
- Working current: 200mA max
- Antenna impedance: 50Ω
- Antenna gain: 2db
- Video impedance: 75Ω
- Video format: NTSC/PAL auto
-  Dimension:  80x 65 x15mm
- Weight: 85g

Item Packing
- 1 x receiver (RX)
- 1 x antennas (2db)
- 1 x basic wires set

Requires:
- 1 x transmitter (TX)  not included
