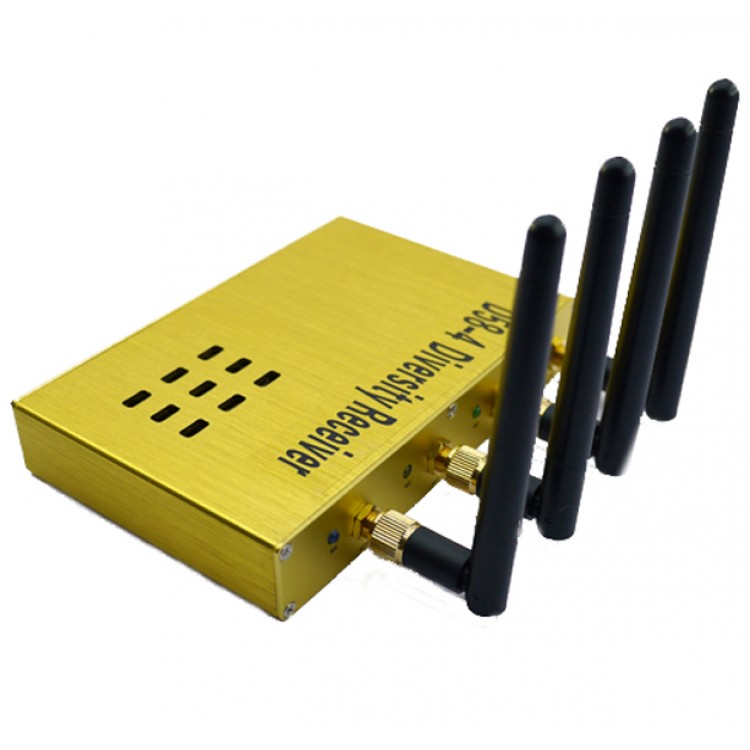

FPV D58-4 5.8G Four Channel 500MW 12V Diversity Receiver

Description:
- Features of D58-4 5.8G Four Channel Diversity Receiver:
- Four channel Receiver for best reception
- Four groups frequencies can be offered
- Automatic Antenna Switching
- Triple, buffered AV outputs
- Can receive 4 different channels at the same time
- Not affect by 2.4GHz R/C Radios
- AV Receiver with Diversity inputs
- Small, light weight,four channel,anodized aluminum case

Specifications of D58-4 5.8G Four Channel Diversity Receiver:
- Four groups frequencies can be offered:

       CH1: 5865MHz    CH2: 5845MHz    CH3: 5825MHz    CH4: 5805MHz
       CH5: 5785MHz    CH6: 5765MHz    CH7: 5745MHz    CH8: 5725MHz

       CH1: 5733MHz    CH2: 5752MHz    CH3: 5771MHz    CH4: 5790MHz
       CH5: 5809MHz    CH6: 5828MHz    CH7: 5847MHz    CH8: 5866MHz


       CH1: 5705MHz    CH2: 5685MHz    CH3: 5665MHz    CH4: 5645MHz
       CH5: 5885MHz    CH6: 5905MHz    CH7: 5925MHz    CH8: 5945MHz

       CH1: 5720MHz    CH2: 5740MHz    CH3: 5760MHz    CH4: 5780MHz
       CH5: 5800MHz    CH6: 5820MHz    CH7: 5860MHz    CH8: 5880MHz

- Video Output: 75Ω/1Vp-p
- Audio Output: 10KΩ/500mVp-p
- TV System: PAL/NTSC/SECAM
- Input Voltage: 8-12V/500mA

Package content:
- 1x D58-4  diversity receiver
- 4x 5.8G 2dbi antenna
- 1x power plug
- 4x Avout cable

How to Use:
To receive 4 different channels at the same time:
- Connect the antennas then connect the AV cables to: AV1,AV2,AV3,AV4, and then connect the 12V DC power adapter
- Switch on the power button, LED1,LED2,LED3,LED4 are on means the 4Ch RF are working. LED5, LED6, LED7, LED8 are all on and AV1, AV2, AV3, AV4 are then ready to work.LED8 is on when no signal.
- Select the channel: RX1 for RF1 and RX2 for F2, RX3 for RF3, RX4 for RF4, with different position of the number 1, 2, 3 names different channels from CH1 to CH8.
Operation for Diversity use
- Connect the AV cable to AV5, and connect the antennas, and then apply the power
- Switch on the power button
- Set RX1,RX2,RX3,RX4 to the same channel
- LED5 for RF1 and LED6 for RF2,LED7 for RF3,LED8 for RF4. The LED will be on when the strongest signal is confirmed. It will automatically switch to the receiver with the strongest signal
