FPV Pixhack 2.8.4 Flight Controller 32Bit Open Source Based on Pixhawk Autopilot for Drone Quadcopter

Availability: Out Of Stock

  • Price:$62.31
  • Price in reward points: 623 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $61.06 $59.82 $57.95 $55.46 Contact US
Quantity:

FPV Pixhack 2.8.4 Flight Controller 32Bit Open Source Based on Pixhawk Autopilot for Drone Quadcopter

Description:

Based on pixhawk's powerful open source procedure,Pixhack Flight Controller provide more functions,
We removed those needless ports to make it better,
In pixhack 2.8.4,IMU inertia control unit seperate with the main flight control,it become floating structure which can rstrain the viberation on high-speed mini copters.

Features:
- Independent IMU unit,built-in floating viberation absorb structure,to keep your drone steady.
- Removed the needless ports like SPKT/DSM,CAN.
- Procedure based on pixhawk,with variety of functions
- The ports like GPS/TELEM/POWER are the same as APM 2.5/2.6/2.8
- Main control size:69*45*16 mm
- Weight:33g

Advantages:
- Advanced 32-bit ARM Cortex M4 high performance processor.
- 8pcs PWM/servo output,Max supporting 8-axis copters
- Automatic & manual mode
- Redundancy power input and malfunction shifting function.
- Multi-color LED
- Multi-tone Buzzer port
- Record flight data with Micro SD card

CPU:
- 32-BIT 2MB cache STM32F427 Cortex M4,with hardware floating-point processing unit.
- Basic frequency:168MHZ,256K RAM.
- 32-BIT STM32F103 backup coprocessor.

Sensor:
- L3GD20 3-axis 16-bit digital GYRO
- LSM303D 3-axis 14-bit accelerometer/magnetometer
- MPU6000 6-axis accelerometer/magnetometer
- MS5611 high precision barometer

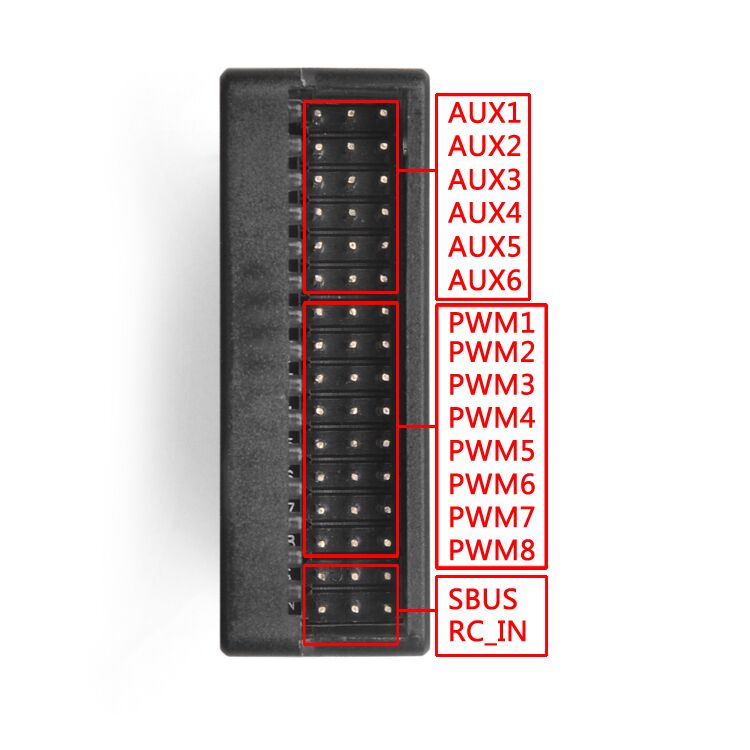

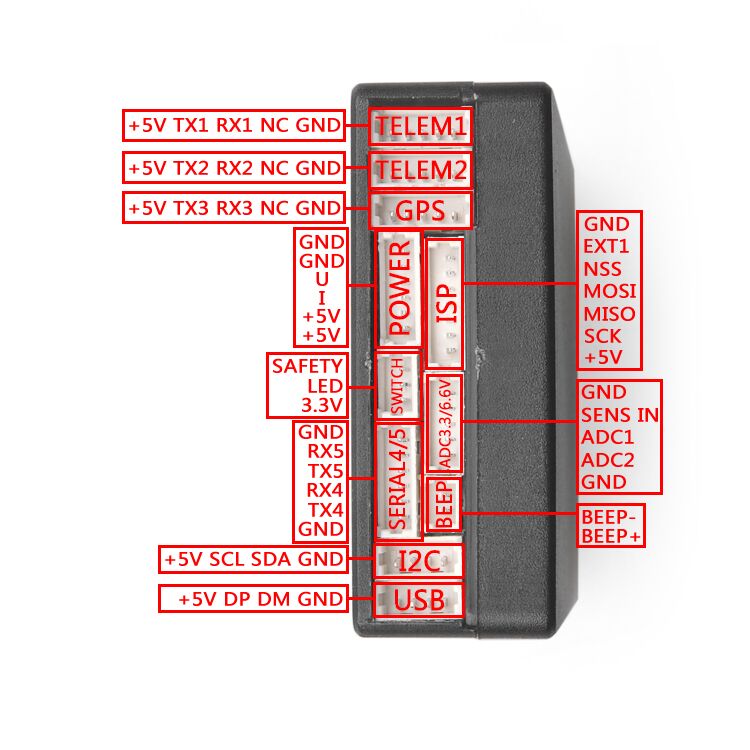

Connector:
- Futaba SBUS input compatible
- PPM signal input
- PWM signal output
- One I2C port(1.25mm spacing,4pin,JST)
- Two Telemetry prots(1.25mm spacing,5pin JST)
- One Powermodule port(1.25mm spacing,6pin JST)
- One GPS port(1.25mm spacing,5pin JST)

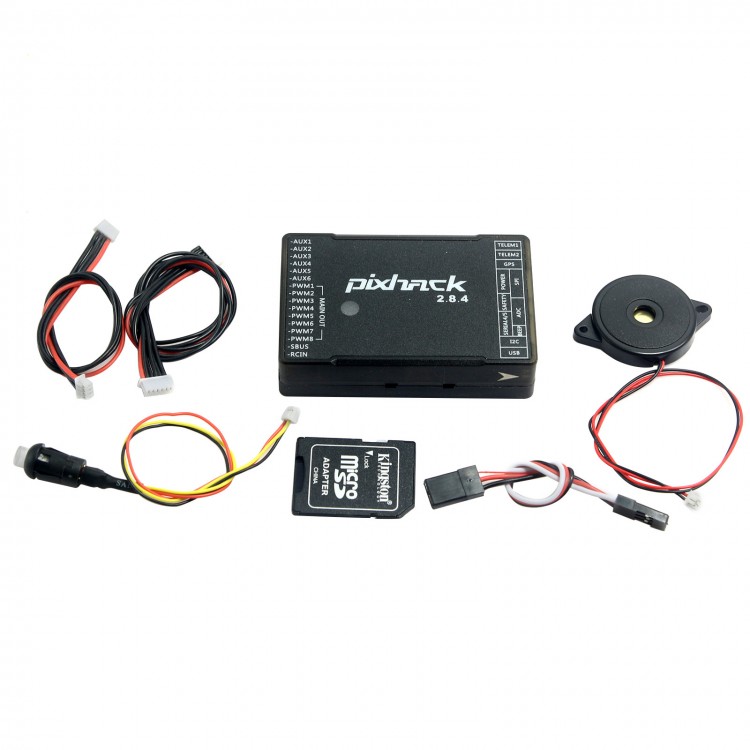

Package Included:
- Pixhack 2.8.4 flight control*1
- Safety switch*1
- Buzzer*1
- Micro SD card*1
- SD card reader*1
- Cables
