FPV Remzibi OSD Multicopter OSD w/ UBlox GPS+TTL Converter Cable for APM 2.52 MWC Flight Control

Descriptions:
- Supply power requirement: 7V-14V (ie: 2S or 3S Lipo)
- Video voltage measurment range 0-15V
- Engine(ENG) voltage measurment range 0-30V
- General purpose ADC measurment - Build your own or use off the shelf components for many advanced readings - ie. Temperature, Amps, Air Speed, Prop Speed, RSSI, etc.
- Video signals - standard PAL or NTSC
- GPS - any GPS 5V supply with NMEA protocol with TLL standard TX RX signals (however best results and advantages are with dedicated GPS module working 5Hz update position)
- Weight : 16 gram (OSD + dedicated GPS)
- Printed OSD board size 20mmx45mm (0.78"x1.77")

Feature:
- PC connection for configuration/calibration purposes using dedicated PC program
- No need for a free channel on your receiver for OSD to function
- GPS detection and configuration automaticaly
- Home autosave function configurable based on number of satelites - button "save home" works independently
- Metric(km/h) or feet(MPH) units - configurable
- Zero altitude to airfield level - configurable
- Fully configurable screen layout (no more cropped off data around the screen border like some other OSD's)
- Graphical symbols and fonts configurable (Font editor for creating your own symbols and characters)
- Voltages calibration function and all ADC inputs including alarms
- Frequency calibration for Hz or RPM (gain definable)
- PC configuration software includes GPS emulator for testing and setup purposes.
- Language Editor - Currently available in English, Polish and French. Simple to use langauge editor can be used to translate to any other language.

GPS Specifications:
- with EEform,can save settings ,also you can set baudrate as you like
- Main control board:U-blox
- Locate performance:<2.5m[Autonomous][50%]
- Speed:<0.1m/s;Direction:<0.5Degrees
- Precision:30ns
- Reference coordinate system:WGS-84
- Max altitude:50000 M
- Max speed:500m/s
- accelerator:<4g
- Cold start:32s average
- Hot start:1s average
- Operate temperature:-40-85C
- Voltage:+3.3V~+5.5V
- Locate referesh time:1Hz~5Hz[optional,defualt 5Hz,200ms
- Data speed:9600bps~ 115200 bps (defualt 38400 bps)
- with high brightness LED indicator:

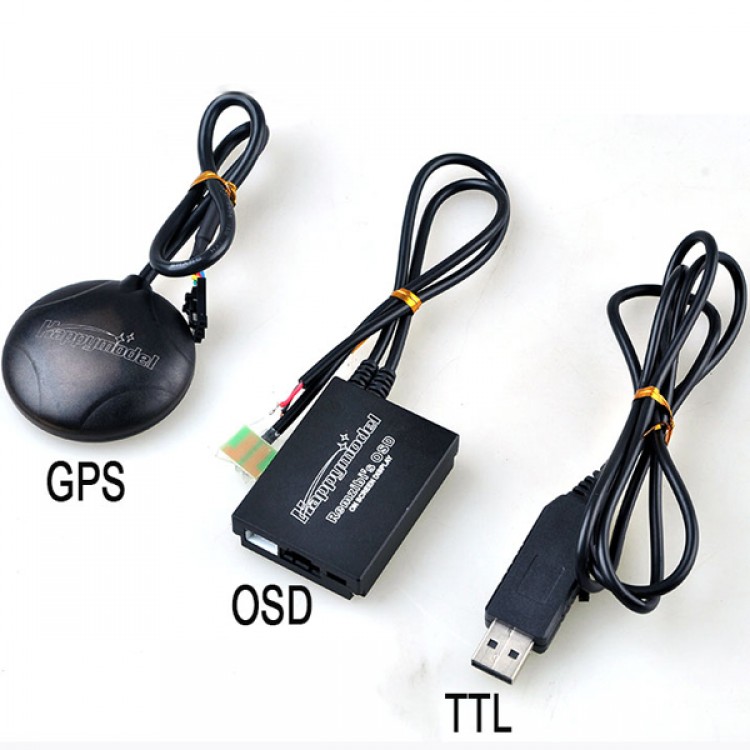

PAckage included:
- 1 x OSD (SKU:26060)
- 1 x GPS (SKU:24925)
- 1 x TTL Converter cable
