FPV TS353 5.8G 400MW Video Audio A/V Transmitter TX 2KM +RC805 Digital Display Receiver Tx/RX Set

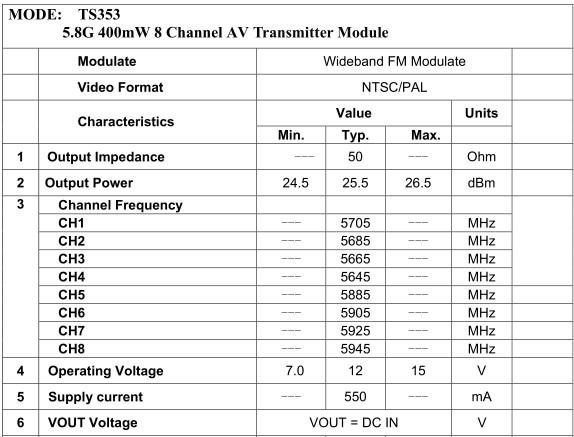

Transmitter specification:
- Transmission frequency 5705-5945MHz,8 channels
- Transmit Power 50dBm/400mW
- Transmission Distance > 4000 meters
- Frequency Control  Built-in PLL(Phase Locked Loop)

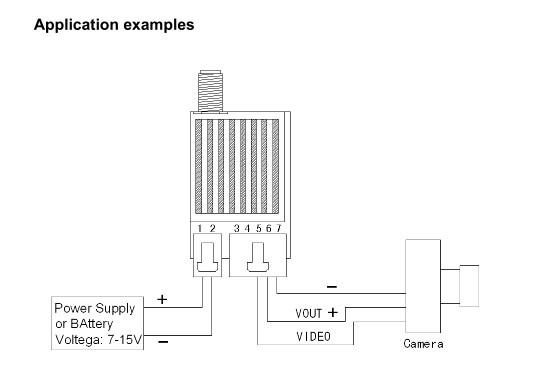

- AV input, direct input analog audio and video signals
- Antenna interface,SMA (the pin)
- Supply voltage, 7-15V
- Supply Current, 260mA
- Dimension 55 * 26 * 17mm Weight 30G

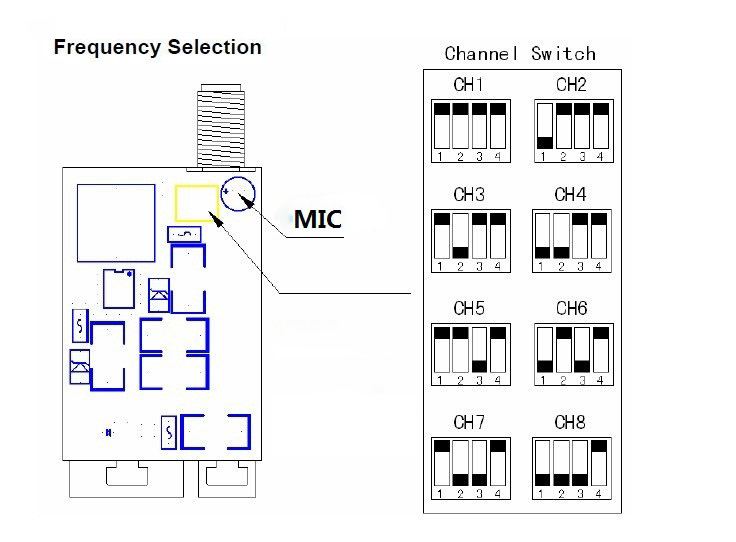

Working frequency,
CH1 5705 CH2 5685
CH3 5665 CH4 5645
CH5 5885 CH6 5905
CH7 5925 CH8 5945



Receiver Specifications:
- Receiving frequecny:5725-5865MHz;8CH
- Receiving sensitivity:-90dBm
- Frequency control:built-in frequency and phase lock loop
- Double lines AV output:analog AV signal output
- Antenna connector:SMA(Inside the needle)
- Power supply voltage: 6.5-15V
- Supply current: 150mA
- Dimension:75*54*15mm



Package Included:
- 1 X 5.8G wireless transmitter TS353 200mw
- 1 X 5.8 G Receiver RC805
- 1 X Connector and cable set
