Friendly Arm 1GB N-Flash Mini2440 Development Board Arm9 S3C2440 3.5" LCD+Camera+Wi-Fi
  • Friendly Arm 1GB N-Flash Mini2440 Development Board Arm9 S3C2440 3.5" LCD+Camera+Wi-Fi

  • SKU:28296
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 12
  • Price:$119.90
  • Price in reward points: 1199
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.50 $115.10 $111.51 $106.71 Contact US

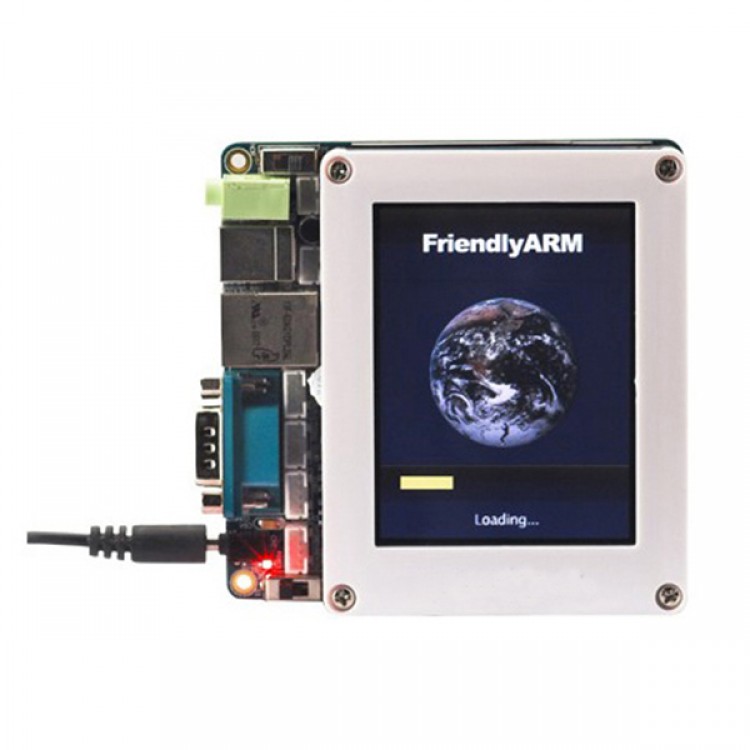

Friendly Arm 1GB N-Flash Mini2440 Development Board Arm9 S3C2440 3.5" LCD+Camera+Wi-Fi

Introduction:
- The MINI2440 is an effecient ARM9 development board with a comprehensive price, it characterizes simple method and high performance-price ratio. Based on the Samsung S3C2440 microprocessor, it embodies professional stable CPU core power source chip and reset chip to ensure the stability of the system operation. The PCB on the MINI2440 board is designed to be 4-layers board, adopting the ENIG technology and professional equal-length wiring to ensure the completeness of the signals of the key signal wires; and manufactured and released under stringent quality control plans. With the help of this detailed manual, users are supposed to become proficient in the development process of embedded Linux and WinCE operating system, they are supposed to get the foundation, so long as they have obtained the basic and necessary knowledge about the C language, in two weeks.



(Item)

Specification

CPU

Samsung S3C2440(ARM920T core with MMC, Up to 532MHz)

SDRAM

64Mbyte

Flash

1G byte Nand Flash + 2M Nor Flash(BIOS installed)

(LCD Support)

STN LCD Displays:
●Supports 3 types of LCD panels: 4-bit dual scan, 4-bit single scan, and 8-bit single scan display type
● Supports the monochrome, 4 gray levels, and 16 gray levels
●Supports 256 colors and 4096 colors for color STN LCD panel
●Supports multiple screen size
Typical actual screen size:640 x 480, 320 x 240, 160 x 160, and others
TFT LCD Displays:
● Supports 1, 2, 4 or 8-bpp (bit per pixel) palletized color displays for TFT
● Supports 16, 24-bpp non-palletized true-color displays for color TFT
●Supports maximum 16M color TFT at 24bit per pixel mode
● Supports multiple screen size
Typical actual screen size: 1024x768 640 x 480, 320 x 240, 160 x 160, and others

USB Port

1 USB host and 1 USB device

Audio

Audio Input/Output

LAN

1 10M Ethernet interface (RJ-45 interface)

SD/MMC

SD card interface and holder

Camera

All CEMERA signal pin out (Optional Camera avail.)

UART

1 RS232 serial port, 3 serial ports available through 14pin (2.0mm space) interface

Jtag

standard JTAG interface)

Buttons

6 Test buttons

LEDs

4 Status LEDs

I2C bus

AT24C08

AD input

AD input test

PWM

PWM controlling speaker

RTC

RTC (battery backed)

Expansion

●34pin GPIO expansion connector
●40 pin System bus expansion connector

Power Supply

+5V

Dimensions

100x100 mm



Linux 2.6.13 Features:


Item

Function and Characteristic

BIOS (Provide source code)

boot

Xmodem

Update Flash

Set Kernel Parameter

Set Partation

BIOS( Do not provide source code)

boot

Xmodem

USB

yaffs

eboot

Update Flash

Set Kernel Parameter

Set Partation

File system

Linux kernel 2.6.13

YAFFS

ROM/CRAMFS/EXT2/FAT32/NFS

MACH_TYPE

Driver support

System Interrupt & Timer Driver

Serial device driver

Block memory device driver

Flash memory device driver

10Base-T external Ethernet device driver

RTC (Real Time Clock) Driver

USB Host driver

LEDS

Buttons

Many Country Language Support

LCD/Frame Buffer(support 1024*768,800*600,800*480, 640*480,240*320,320*240TFT)

Touch screen driver

MMC/SD card driver

UDA1341

Network protocol and application

TCP/IP

Telnet Server

File transfer (FTP client / server)

Remote login (telnet)

ping, arping

boa

System update and Software download

FTP download

Serial port downloard

USB Download and update

NFS

System Config and Serves

Local console through RS232 and remote telnet configuration and management(Sample Only)

Ifconfig, route, inetd

login, sh, echo

Linux Basic tools

cat, chmod, discard, echo, flashfsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes,insmod, lsmod, rmmod

Embedded Graphical Interface

QT/EMBEDED

Driver for external USB device

USB Disk

Removable harddisk

USB Hub

USB Mouse and Keyboard

USB Camera




























































































































































Window CE



BIOs

sbc_vivi
(Do not provide
source code)

Add USB downloading function in vivi, supporting downloading/ updating image with USB

Eboot

Ethernet bootloader for wince

Driver

Serial device

Serial port 0

Flash memory

Nand Flash driver

10M Ethernet

CS8900

USB Host

Support USB keyboard and USB mouse

USB device



RTC



EINT



LCD

Support 240x320, 640x480

Audio



SD/MMC card
