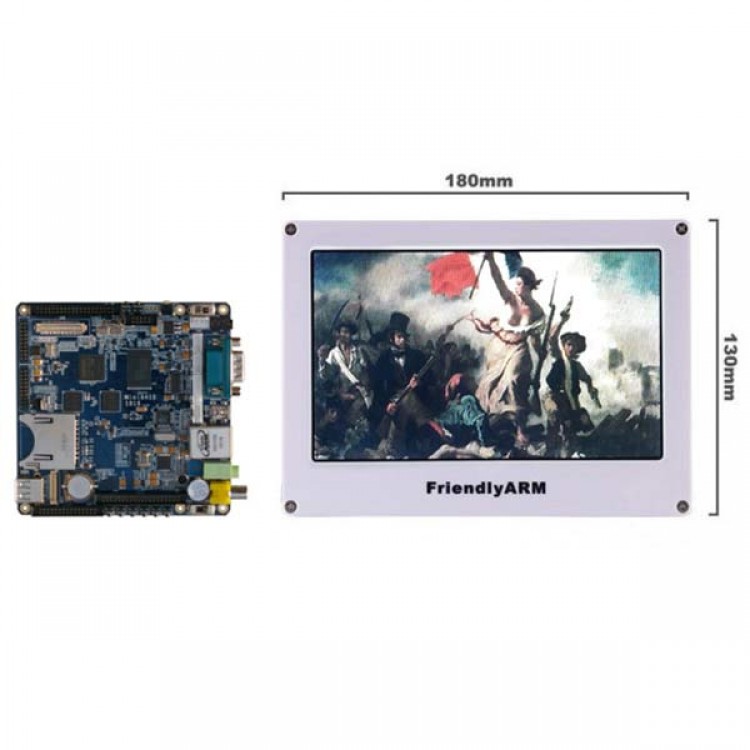

Friendly ARM11 Mini6410 S3C6410 (1G NAND Flash) Board+ 7" TFT LCD with Touch Panel
Features

- ARM11 Samsung S3C6410, ARM1176JZF-S, up to 533MHz
- 256MB DDR RAM and 1G NAND Flash
- LCD/Touch Screen, CVBS/TV, Audio support
-  SD card, USB Host/OTG support
-  Ethernet, serial port, GPIO
-  GPRS/WIFI/GPS/Camera/3G module/USB Bluetooth support (option)
- Linux 2.6.28, WinCE6.0, Ubuntu support
- Support Android 2.3
- Source code provide

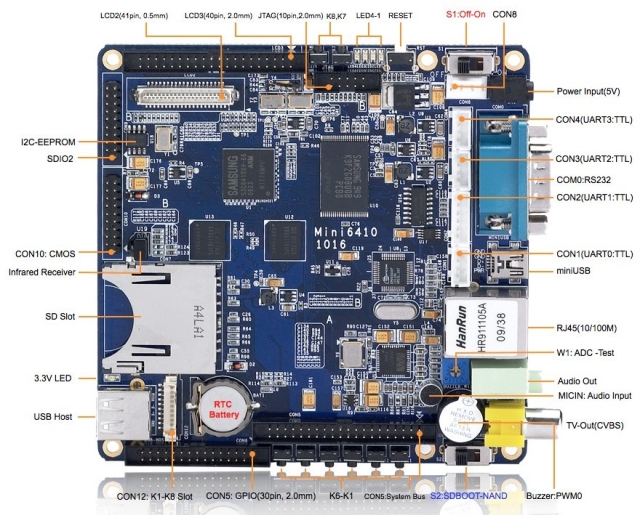

Board Resource:

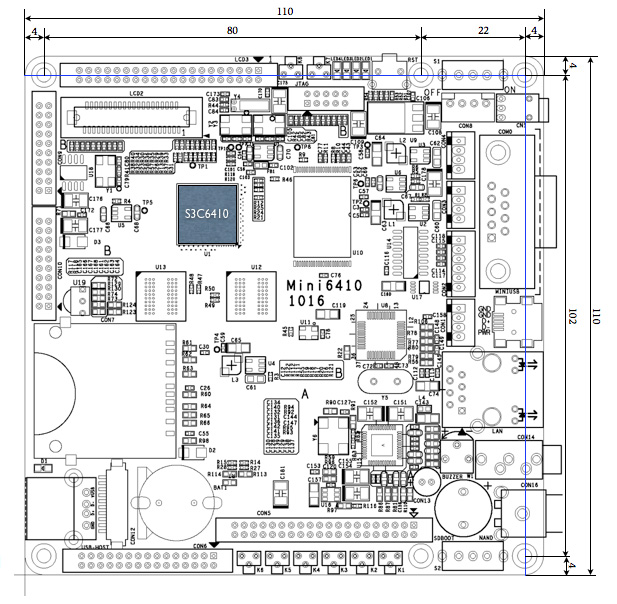

- Dimension: 110 x 110 mm
-  CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
- RAM: 256 MB DDR RAM, 32 bit Bus
- Flash: 1GB NAND Flash
- EEPROM: 1024 Byte (I2C)
- Ext. Memory: SD-Card socket
- Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
- IR: Infrared Receiver
- USB: 1x USB-A Host, 1x miniUSB Slave-OTG 2.0
- Audio Output: 3.5 mm stereo jack
-  Audio Input: Condenser microphone
-  Ethernet: RJ-45 10/100M (DM9000)
-  RTC: Real Time Clock with battery
- Beeper: PWM buzzer
- Camera: 20 pin Camera interface (2.0 mm)
- TV Output: CVBS
-  LCD Interface
- STN Displays:
- Monochrome, 4 gray levels, 16 gray levels, 256 colors, 4096 colors
- Max: 1024x768
- TFT Displays:
- Monochrome, 4 gray levels, 16 gray levels, 256 colors, 64k colors, true color
- Max: 1024x768
- 40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays (4.3" and 7")
- Touch Panel: 4 wire resistive
- User Inputs: 8x push buttons and 1x A/D pot
- User Outputs: 4x LEDs
- Expansion: 40 pin System Bus, 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 10 pin Buttons(2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- Power: 5V connector, power switch and LED
- Power Supply: regulated 5V (Mini6410: 0.25 A, Mini6410 + 4.3" LCD: 0.5 A)

Package List:
- Mini6410 board (With 1G NAND FLASH Preload with Linux)×1
- TFT LCD: 7"  , with touch panel×1
- DB9 Serial Converter×1
- USB cable×1
- Net cable×1
- 5V power adapter×1
- DVD-ROM with product reference ×1
- Package box x1
