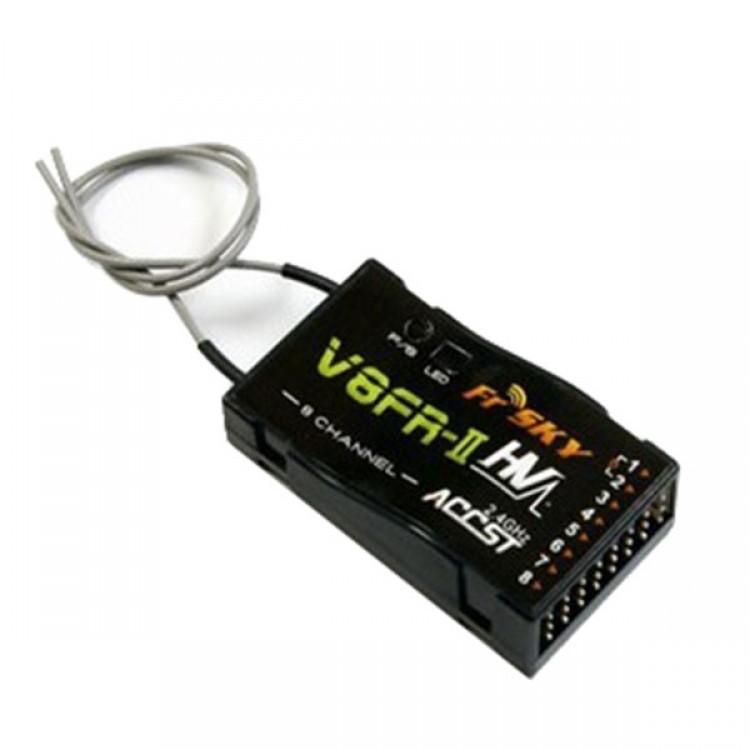

FrSky 2.4G 8Channel High Voltage Receiver V8FR-II HV for FPV Photography
Description:
- Frsky 2.4G 8/V8FR-II HV channel high voltage receiver is only compatible with the high frequency head produced in FrSky industry, can not directly use high frequency head of FUTABA or JR to match code between receiver and transmitter. Please install your system according to the following steps:
- Open your Futaba or JR remote controller and debug it to the PMM mode, and then turn off the remote controller
- Press the F/S Range button on the transmitter module, meanwhile, open remote control, leave the button after several seconds. When the red LED on the transmitter starts to flicker, it means RC and TX module is ready to match code with receiver
- Press F/S button on the receiver, meanwhile, connect battery with receiver. LED light on the receiver will indicate the receiver is receiving the instructions given by transmitter. After few secs, the system is ready to work(communication completed)
- When finished all the steps above, TX module and RX can be directly used. When you need to match the code again, only need to add new receiver or TX module
Parameters:
- Working voltage range: 4.0V- 7.2V
- Opearting current: 30mA
- Receiving range: 1.5km
- Definition: 3072
- Responde time: 22ms
- Channel: 8 ch
- Dimension: 50×15×24.5mm
- Weight: 14g
Package includes:
- Frysky 2.4G 8CH receiver x 1
