FTDI Basic Breakout USB-TTL ASP 6 PIN 3.3 5V for MWC MultiWii Lite /SE Arduino
  • FTDI Basic Breakout USB-TTL ASP 6 PIN 3.3 5V for MWC MultiWii Lite /SE Arduino
  • FTDI Basic Breakout USB-TTL ASP 6 PIN 3.3 5V for MWC MultiWii Lite /SE Arduino

  • SKU:15952
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$10.08
  • Price in reward points: 101
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.88 $9.68 $9.37 $8.97 Contact US

FTDI Basic Breakout USB-TTL ASP 6 PIN 3.3 5V for MWC MultiWii Lite /SE Arduino

- This is the newest revision of our FTDI BASIC. It now uses a SMD 6-pin  header on the bottom, which makes it smaller and more compact.  Functionality has remained the same.

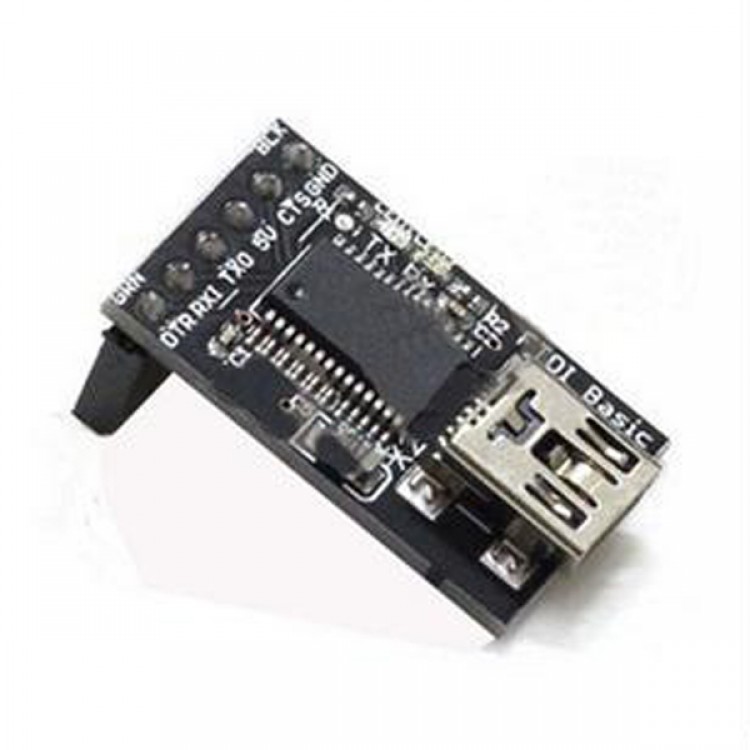

- This is a basic breakout board for the FTDI FT232RL USB to serial IC.  The pinout of this board matches the FTDI cable to work with official  Arduino and cloned 5V Arduino boards. It can also be used for general  serial applications. The major -difference with this board is that it  brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The  DTR pin allows an Arduino target to auto-reset when a new Sketch is  downloaded. This is a really nice feature to have and allows a sketch to  be downloaded without having to hit the reset button. This board will  auto reset any Arduino board that has the reset pin brought out to a  6-pin connector.
- The pins labeled BLK and GRN correspond to the colored wires on the FTDI  cable. The black wire on the FTDI cable is GND, green is CTS. Use these  BLK and GRN pins to align the FTDI basic board with your Arduino target.
- This board has TX and RX LEDs that make it a bit better to use over the  FTDI cable. You can actually see serial traffic on the LEDs to verify if  the board is working.
- This board was designed to decrease the cost of Arduino development and  increase ease of use (the auto-reset feature rocks!). Our Arduino Pro  boards and LilyPads use this type of connector.
- One of the nice features of this board is a jumper on the back of the  board that allows the board to be configured to either 3.3V or 5V (both  power output and IO level). This board ship default to 5V, but you can  cut the default trace and add a solder jumper if you need to switch to  3.3V.

Usefull links:
- MWC latest version of the program, with the corresponding GUI setup   program:http://code.google.com/p/multiwii/downloads/list
- Arduino edit and upload an essential tool for program:http://arduino.googlecode.com/files/arduino-0023.zip
- FTDI USB to TTL-driven tools:http://www.ftdichip.com/Drivers/CDM/CDM20814_WHQL_Certified.zip
- Arduino and MWC configuration procedures are required to support  JAVA  virtual machinecan visit the official website to download JAVA:http://www.java.com
- RCGruop forum, please post on the MWC favorites, latest news and   updates are posted here, you can learn many things

- MWC official website, DIY  guides, FAQ and Forum:http://www.multiwii.com
- Windows 32/64 bit Driver 2.08.14:http://www.ftdichip.com/Drivers/CDM/CDM20814_WHQL_Certified.zip
- Arduino 0023: http://arduino.googlecode.com/files/arduino-0023.zip
- MWC the latest version of firmware and configuration procedures:http://code.google.com/p/multiwii/downloads/list
