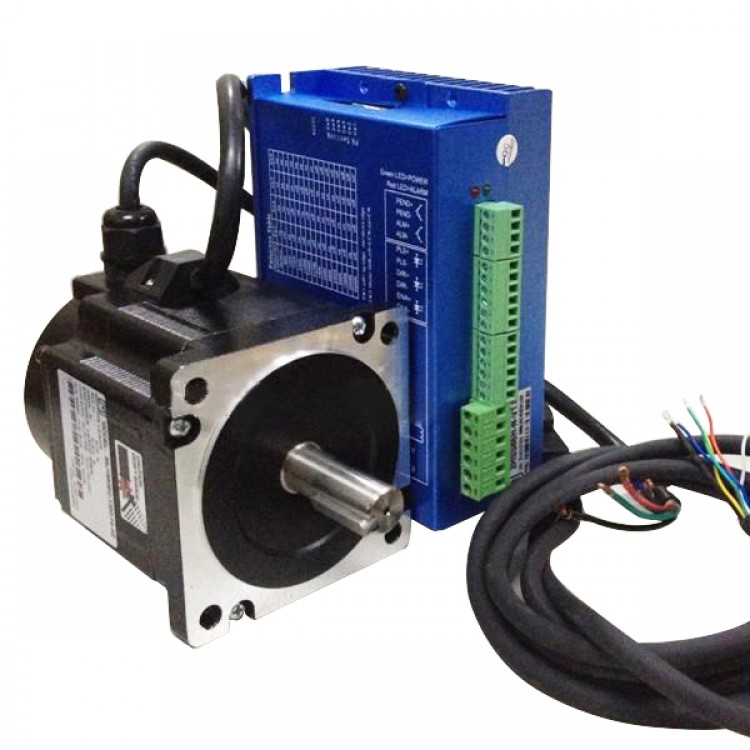

Full Close Loop High Speed Constant Torque Steping Servo Combo 86 80 Close Loop Stepping Motor + Driver 4N.M

Full Close Loop High Speed Constant Torque Steping Servo Combo 86 80 Close Loop Stepping Motor + Driver 4N.M

Motor description:
- Type: 86*86
- Length: 107mm
- Torque: 4N.m
- Rated current: 4.2A
- Key slot: 5*5*25
- The largest rotate speed: 3000rpm
- Rated rotate speed: 1500rpm

Stepping motor driver description:
- Full closed loop control
- Encoder 1000PPR
- Nearly 100% output torque
- Fast response, high speed
- Input under position control mode: A. Pulse+ directionB.  Pulse +negative directionC. Dual pulseD.  Communication
- Optical isolation servo reset input interface ERC
- Optical isolation alarm output interface ALM
- Current loop width: (-3dB) 2KHz (typical value )
- Velocity loop width:500Hz (typical value)
- Position loop width:200Hz (typical value)
- Encoder input interface: differential input (26LS32)
- Can download parameter with RS232 cable or text display.
- Protection for over current, over voltage, under voltage, over heat, over speed, over proof.
- Green LED means on, red LED means protection or off-line

Package list:
- 86 80 Close Loop Stepping Motor
- Driver 4N.M
- Users manual
- Encoder extension line x 1(1,2,3M optional)
- Communicaion line x 1
- Testing software x 1
