| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $260.68 | $255.36 | $247.38 | $236.74 | Contact US |

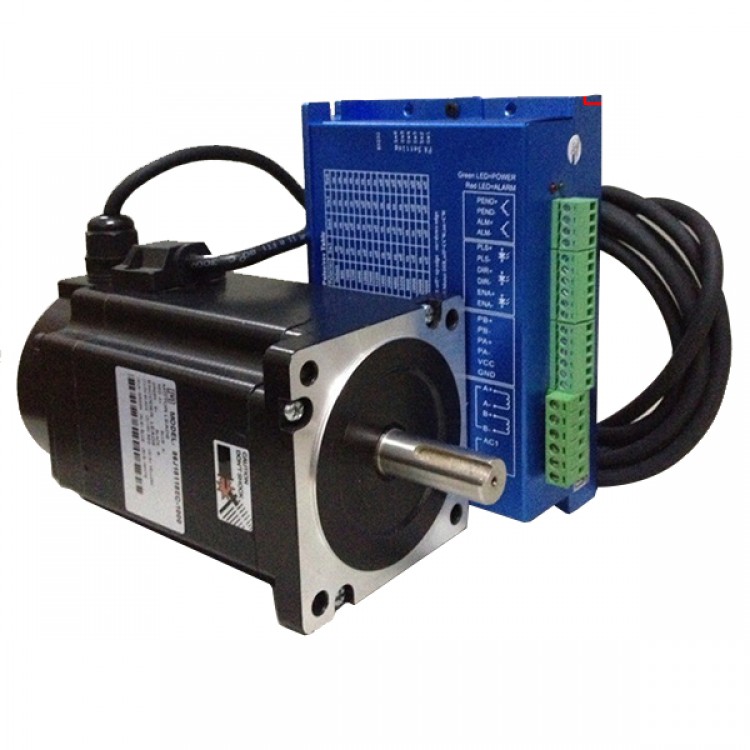

Full Close Loop High Speed Stepping Servo Combo 86 118 Cose Loop Stepping Motor + Driver 8.5N.M
Motor description:
- Type: 86*86
- Length: 150mm
- Torque: 8.5N.m
- Rated current: 4.2A
- Key slot: 5*5*25
- The largest rotate speed:3000rpm
- Rated rotate speed: 1500rpm
Stepping motor driver:
- Full closed loop control
- Encoder 1000PPR
- Nearly 100% output torque
- Fast response, high speed
- Input under position control mode: A. Pulse+ directionB. Pulse +negative directionC. Dual pulseD. Communication
- Optical isolation servo reset input interface ERC
- Optical isolation alarm output interface ALM
- Current loop width: (-3dB) 2KHz (typical value )
- Velocity loop width:500Hz (typical value)
- Position loop width:200Hz (typical value)
- Encoder input interface: differential input (26LS32)
- Can download parameter with RS232 cable or text display.
- Protection for over current, over voltage, under voltage, over heat, over speed, over proof.
- Green LED means on, red LED means protection or in fault status.
Closed Loop Stepper Motor (Easy Servo Motor) solve the fatal problem “loss of steps” of open loop step systems Compared with servo systems, easy servo systems have much higher low-speed torque that servo systems lack, significantly lower cost, no overshooting, and no hunting.
Package list:
- 86 118 Cose Loop Stepping Motor
- Driver 8.5N.M
