FY2300H Function Arbitrary Waveform Generator 30MHz Dual Channel 250MSa/s 100MHz Frequency Signal Meter DDS

Availability: In stock, usually dispatched in 1 business day

  • Price:$99.67
  • Price in reward points: 997 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $97.68 $95.68 $92.69 $88.71 Contact US
Quantity:

FY2300H Function Arbitrary Waveform Generator 30MHz Dual Channel 250MSa/s 100MHz Frequency Signal Meter DDS



User Manual: Click here

Introduction of the instrument

This manual applies to each mode of FY-Economic series Function/Random Waveform Generator.
FY-Economic series adopt direct digital synthesis (DDS) technology and FPGA design. With 14 kinds of frequently-used waveform internal preinstalled, it can also output arbitrary 8-bit 256 dots user-defined waveform. It is easy to use with stable signal and low distortion. It has 1 watt output, broadband frequency measurement and counter functions. The amplitude and DC offset of signal output are adjustable. As a perfect combination of usability, excellent technology indexes and numerous functions, FY-Economic is capable to help the user to accelerate task completion. It’s the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research. It can also be used as supporting module for industrial equipment.

Excellent technical indexes and function features:
- 3 downloadable 256 dots arbitrary waveform memories.
- 14 kinds of frequently-used waveform internal preinstalled. 3 positions are available for user-defined waveform.
- 1 watt signal output.
- Compact size, multiple functions, easy to carry.
- High frequency accuracy: ±5×10-6
- High resolution: 10 mHz
- All range continuously adjustable, digital directly setting.
- High waveform accuracy: The output waveform synthesized by function calculation. High accuracy and low distortion.
- Several different waveforms: Sine wave, Square wave, Triangle wave, Sawtooth wave, user-defined waveform, frequently-used waveform such as pulse, noise, and electrocardiogram etc.
- Save function: 10 sets of parameters defined by the users can be saved and loaded anytime.
- Operation mode: Button controlled, LCD1602 display, digital setting, knob adjusted continuously.
- Highly reliable:Large scale integrated circuit, Surface mounting technology, reliable and durable.
- Frequency measurement:Frequency of internal / external signal can be measured through built-in 20MHz frequency meter.

Main technology indexes

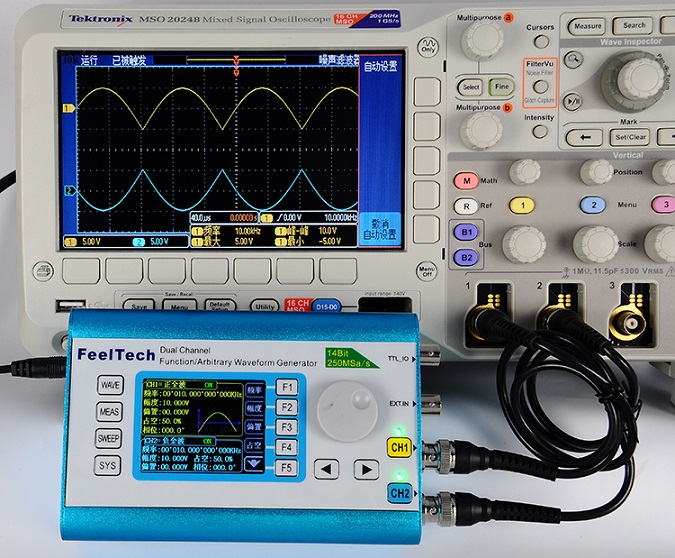

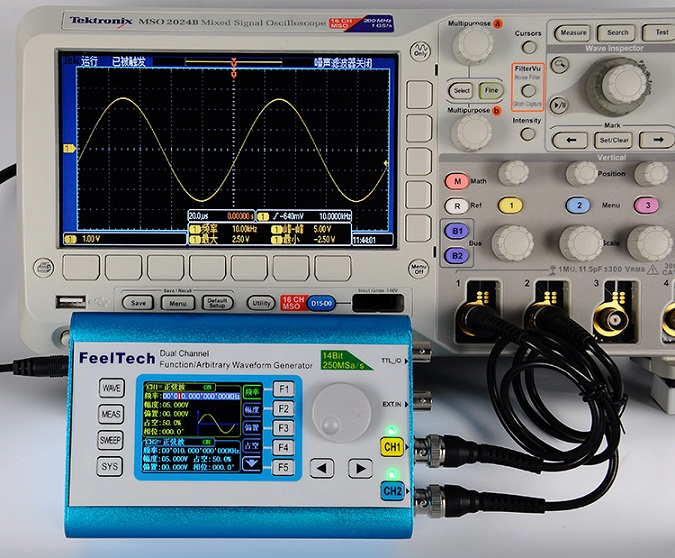

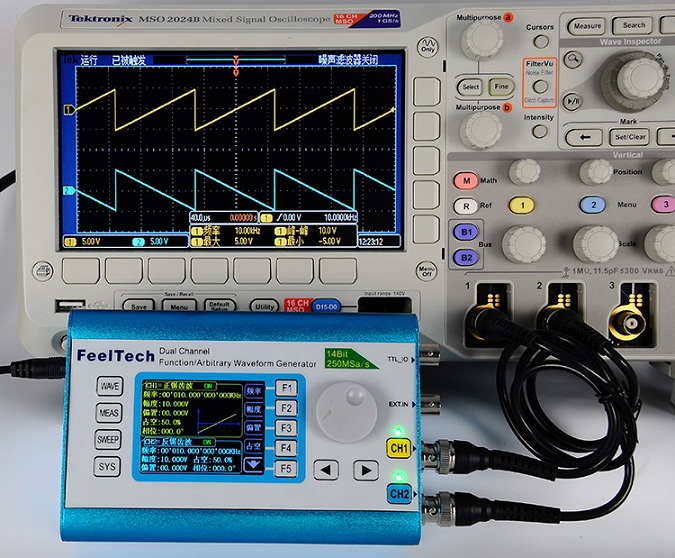

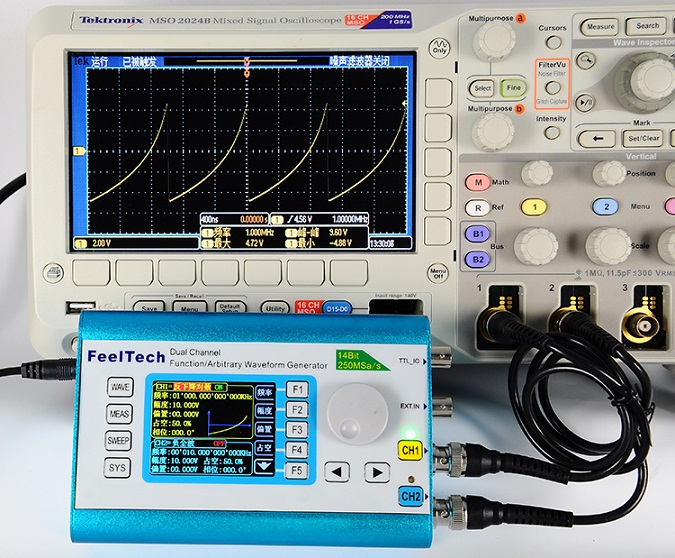

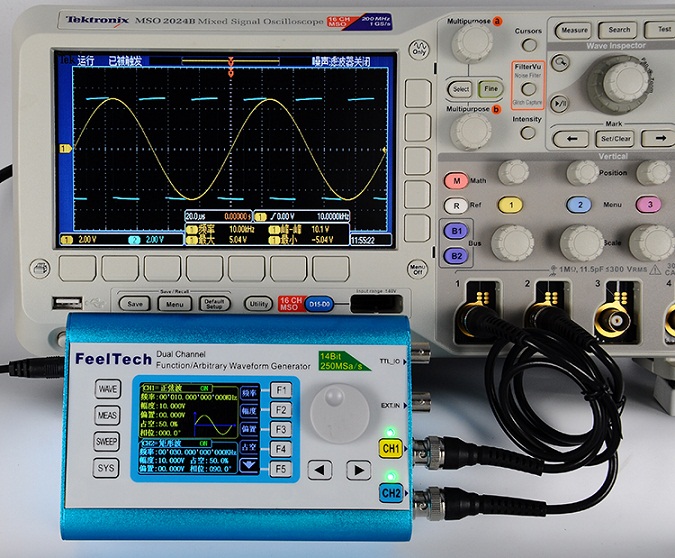

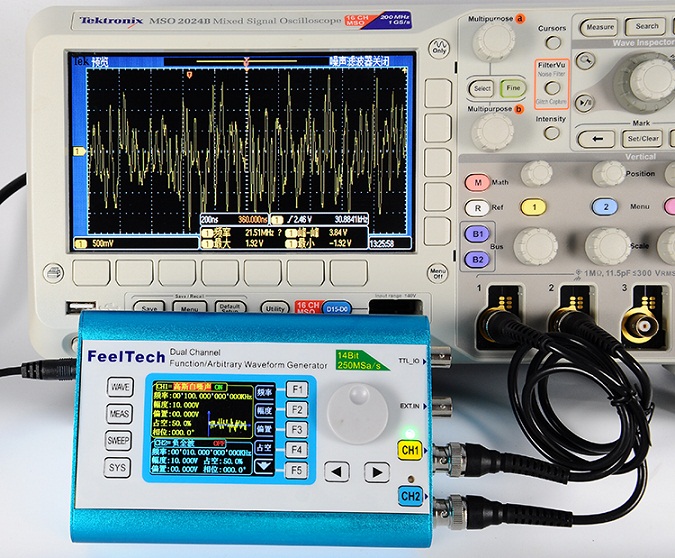

- Output waveforms: Sine wave, Square wave (Duty cycle adjustable) and Triangle wave, Sawtooth wave, frequently-used waveform such as pulse, noise, and electrocardiogram etc.
- Output amplitude: 0.5~8Vp-p (no load)
- Output impedance:  10Ω±10%(signal output)
- DC offset: ±3V
- Frequency range: 0.01Hz ~ 50KHz
- Resolution: 0.01Hz(10mHz)
- Frequency accuracy: ±5×10-6
- Frequency Stability: ±2×10-6/3 Hours
- Sine wave distortion:  <=0.8% (reference frequency is 1kHz)
- Triangle linearity: >=98%  (0.01Hz~5kHz)
- Rise and fall time of square wave: ≤3.8us
- Square Wave Duty range: 1%~99%
- Counter Range: 0-65535
- Frequency Meter Range: 1Hz~20MHz
- Input Voltage Range:  0.5Vp-p~20Vp-p
- Display : LCD1602 in English
- Save and Load Parameter: M0-M9(M0: default load)
 - Size: 83mm (Length)×60 mm(Width)×24mm(Height)
- Production technology : Surface mounting technology, large scale integrated circuit, reliable and durable
- Operation feature: Button-controlled, Knob-adjusted continuously
- Conditions requirement: Temp: 0~40 degree C
- Humidity: <80%

Package Contents:
- 1 x Function Arbitrary Waveform Generator (30MHz)
- 1 x DC 5V Power Supply
