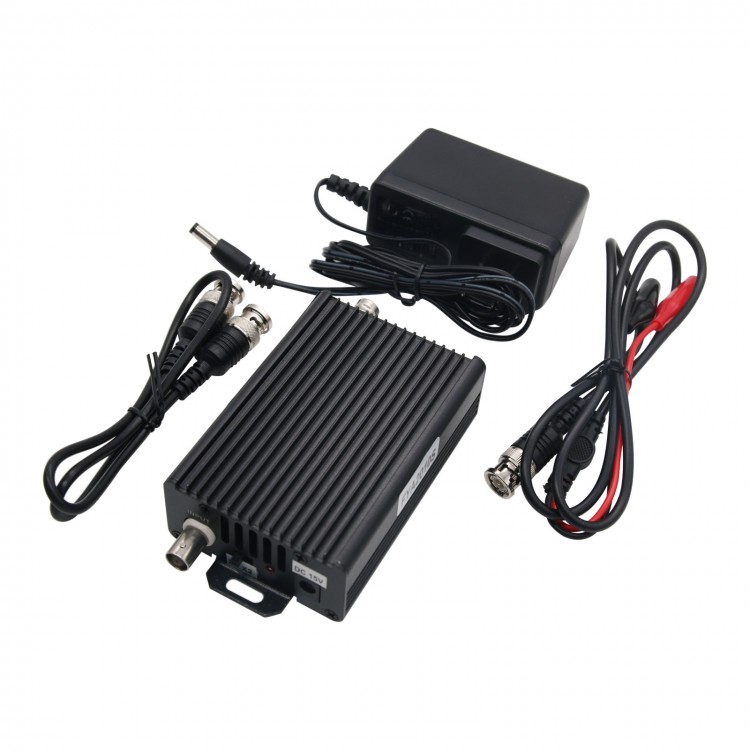

FYA2010 description:
-DC Power Amplifier adopts integrated component imported abroad. It can amplify any kinds of wave in frequency range DC-1MHz such as Sine wave, Square wave, Sawtooth wave, Reverse Sawtooth wave, Triangle wave, Electrocardiogram wave, Saddle wave and Noise wave etc.,
and stably output power signal higher than 20W. It has the following excellent function features:
◆ It can amplify frequency range of the signal: DC-10 MHz
◆ Low distortion, High accuracy signal amplifying. Compatible with all DDS signals.
◆ Peak value 28V（±14V）voltage output.
◆ Current output: 1A (MAX).
◆ X2 to X4 input adjustable continuously.
◆ ≥900V/us Slew rate
◆ ±DC 15V
◆ Input impedance: 10KΩ
◆ Strong self-heat radiation. No fan needed. Be Sable.
◆ Small size, easy to carry.
● technology indexes
Product function & technology indexes | |||
Model | FYA2010 | ||
Bandwidth input | DC~1MHz | ||
Max power output | 20W | ||
Current source input parameter | |||
Voltage input | DC 12V | ||
Power input | ≥30W | ||
Signal input parameter | |||
Input impedance | ≥10KΩ | ||
Input range | ≤12Vp-p | ||
Signal output parameter | |||
Output range | ≥28Vp-p(No load) | ||
Current output | 1A | ||
Impedance with load | ≥8Ω (Max powder output) | ||
Slew rate | ≥900V/us | ||
Harmonic distortion | <1%,DC- 1.5MHz | <1%,DC- 3MHz | |
Other features | |||
Application
l
Electronic test and design
l Sensor simulation and test
l Piezoelectric components selection and test
l Power device and circuit driving
l Education and training
● compatible signal source
l
FeelTech FY3200 FY2200 FY10xx FY20xx Arbitrary waveform generator
l Tektronix AFG3000B AFG2000 Arbitrary waveform generator
l Agilent 33220A 33250A Arbitrary waveform generator
l RIGOL DG1022 DG4000/5000 Arbitrary waveform generator
l Siglent SDG5000 Arbitrary waveform generator
l Sample SPF05/10/20/30/40 Arbitrary waveform generator
●Safety Notes
1、Before using this instrument, please check if the power supply is normal, to ensure the normal use and personal safety.
2、This instrument must be used in the technical index range.
3、Please do not change the instrument circuit arbitrarily, so as to avoid damaging equipment or endangering the safety.
