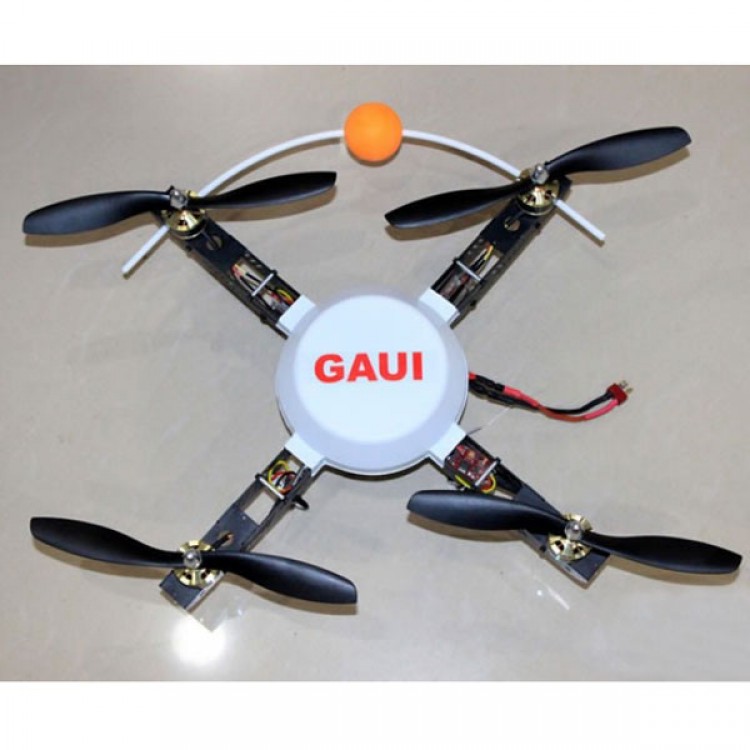

GAUI 330X-S Quadflyer Quadcopter Kits with Scorption Motor and ESC 210001

Gaui 330X Features:

-  Flight Efficiency: Standard Battery (2S2000mAh) time of flight for more than 12min, with a high-capacity battery, the flight time will be more than 20 min or more (available spreadsheet calculation)
-  Excellent wind resistance: the efficiency and load of propeller are perfectly optimized, so the wind resistance will be better than general electric aircraft
-  High stability: contains GU344 (three-axis stabilizing system) for the beginner or the FPV flying, it is a very stable vehicle
-  Additional payload capabilities: payload up to 700g (including battery), can freely install cameras and video recorder, and other general system
-  System Extensibility: can be used with GPS positioning system and navigation system on 330X without any change
-  Operation mode and flight characteristics with the same helicopter, but no complex transmission
-  Collapsible body design, greatly reduce the damage rate, can be repaired easily without adjustment

Flying Weight (g)
Pay load (g)
Power consumption (w)
Efficiency value (g/w)
500
100g(2S2000mAh)
50
10
550
150g(3S2000mAh)
63
8.73
600
200
75
8
650
250
84
7.7
700
300
92
7.6
750
350
102
7.4
800
400
111
7.2
850
450
120
7.1
900
500
130
6.9
950
550
142
6.7
1000
600
155
6.5
1050
650
162
6.5
1100
700
170
6.5

For example, while equipping 330X with a HD camera (350g), you would like to use a 3S2000mAh Lipo battery,
 so the total payload will be 500g (flying weight of 900g),
And hovering consumption of power for 130w (see above)
and your total battery charge for the 11.1X2 (A) X60 (min) = 1332
1332/130 = 10.2 (min) 10.2X75% (battery safety coefficient) = 7.7 (min)
If you want to use two groups 3S2000mAh the Lipo battery,
then your total payload of 650 (flying weight of 1050g),
so the total charge for the 11.1X2 (A) X60 (min) X2 = 2662,
but now hovering consumption power for the 162w
so the flight time (2662/162) X75% = 12.3min

Specification:

- Crossing Distance: 330mm (Shaft to Shaft)
- Propeller size: 8inches
- Motor: Scorpion 1100Kv brushless motor
- ESC: 10A ESC
- Weight: 400g (Flying weight without battery)
- Maximum Flying Weight: 1100g (Including Payload and Battery)
- Battery: 7.4V to 11.1V (2S to 3S Lipo)
- Flying duration: 7 ~ 20minutes  (It may vary according to battery capacity and Payload)
