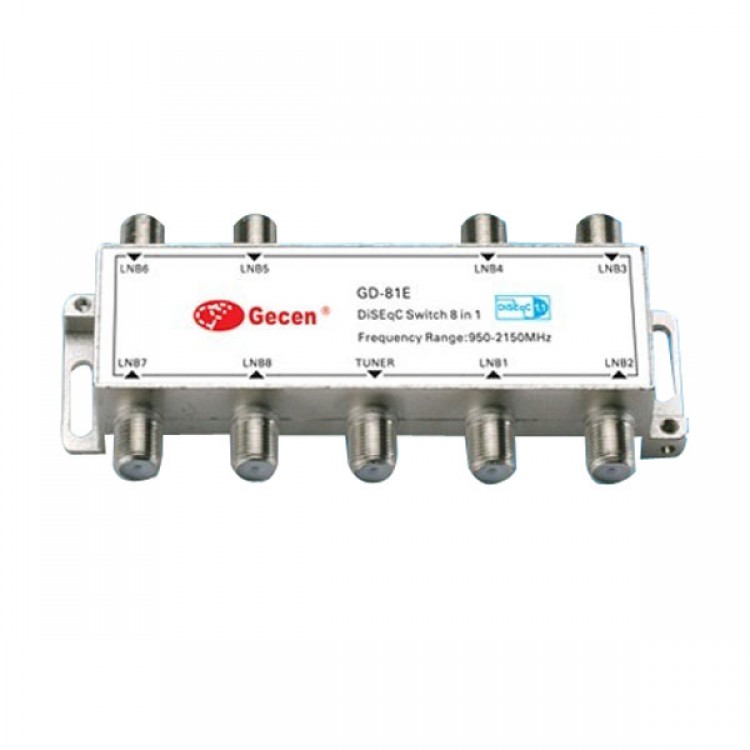

GD-81E 8x1 DiSEqC Switch 8 Port Satellite Signal Switch Multiswitches
Features:
- Zinc die-cast housing, nickel-plated
- Excellent quality component , professional circuit design and low loss
- Excellent quality chip , professional program design and compatible with more types of satellite receiver
- DiSEqC 1.1 control functions
- Select one of eight satellite signals through DiSEqC1.1 commands supplied from satellite receiver
- Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
Specifications :
Frequency Range: 950-2150(MHz)
Normal Working Voltage: 12-20(V)
Insertion Loss: 3(dB)
DC Power Consumption: 10(mA)
Isolation: 20(dB)
DC Max Power Passing: 500(mA)
Return Loss: 8(dB)
Impedance(all ports): 75(Ω)
Package included:
- 1x GD-81E Satellite Switch
