Gear Ratio 19:1 Planetary Gearbox With Nema 8 Stepper Motor 8HS15-0604S-PG19

Availability: In stock, usually dispatched in 1 business day

  • Price:$61.97
  • Price in reward points: 620 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $60.73 $59.49 $57.63 $55.15 Contact US
Quantity:

Gear Ratio 19:1 Planetary Gearbox With Nema 8 Stepper Motor 8HS15-0604S-PG19

Description:

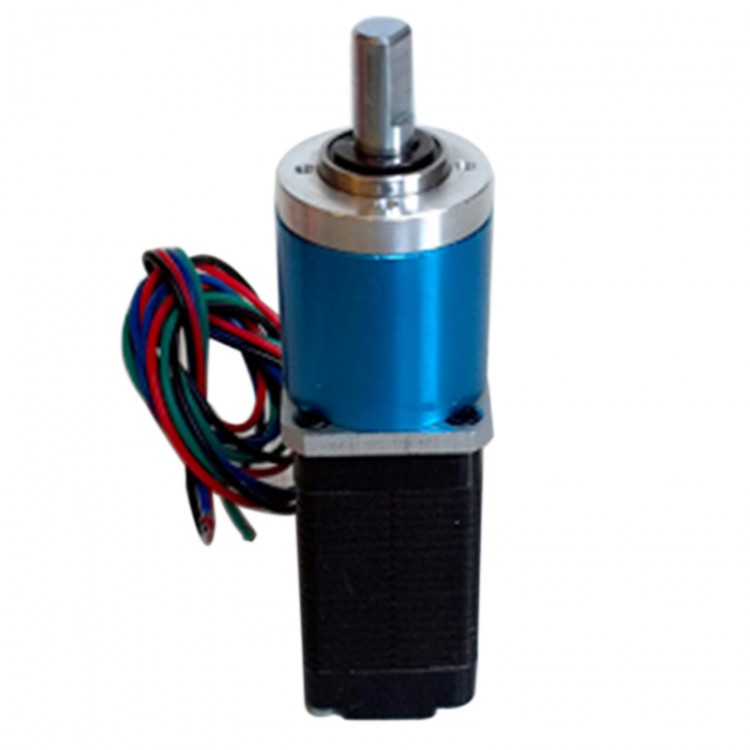

This is the smallest high precision NEMA 8 Stepper motor, it has an integrated Planetary gearbox with a 19:1 gear ratio, the resolution reach 0.095° step angle. It's a good solution in applications that need very low rotation speeds and/or lots of torque.

Warning:Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Package included:
- 1 x Step Motor
