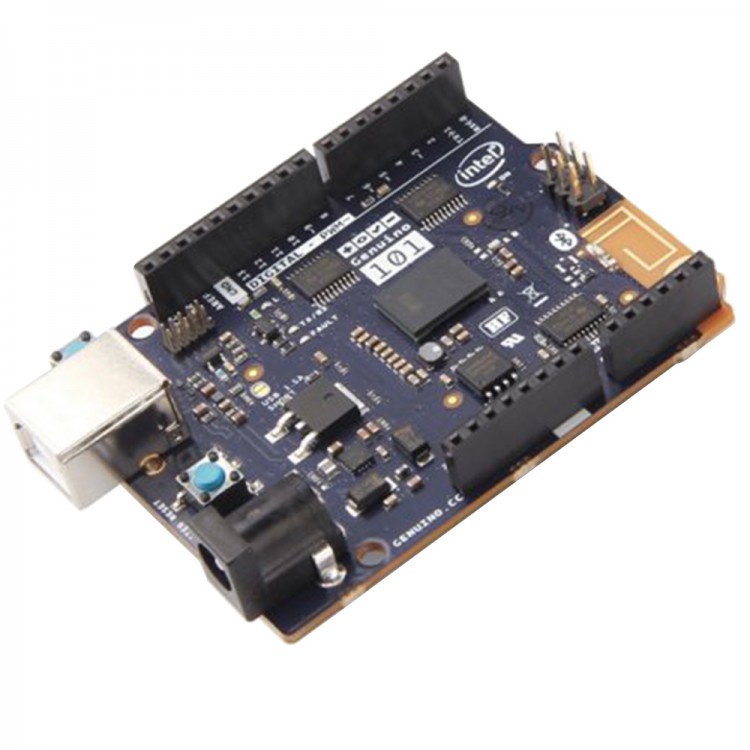

Genuino 101 Bluetooth Development Board Onboard 6-Axis Sensor Intel Cuire for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$51.38
  • Price in reward points: 514 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $50.35 $49.32 $47.78 $45.73 Contact US
Quantity:

Genuino 101 Bluetooth Development Board Onboard 6-Axis Sensor Intel Cuire for Arduino

Introduction:

- The development board Genuino 101 was developed by Ardui no and Intel and is an excellent successor of the Arduino Uno.
- It has two cores: a x86 (Quark) and a 32-bit ARC core, both of which are clocked at 32 MHz. In addition, the board has a Bluetooth LE module and a 6-axis accelerometer / gyroscope.

Specification:
- Microcontrollers: Intel Curie
- Operating voltage: 3.3V (5V tolerant inputs and outputs)
- Input Voltage (recommended): 7 - 12 V
- Input voltage (max.): 7 - 20 V
- Digital inputs and outputs: 14 (including 4 PWM outputs enabled)
- PWM outputs: 4
- Analog inputs: 6
- Current per input and output: 20 mA
- Flash memory for Bootloader: 196 kB
- SRAM: 24 kB
- Clock: 32MHz
- Features: Bluetooth LE, 6-axis accelerometer / gyro
- Dimensions: 68.6 mm x 53.4 mm

Package included:
- 1* Genuino 101 bluetooth development board
