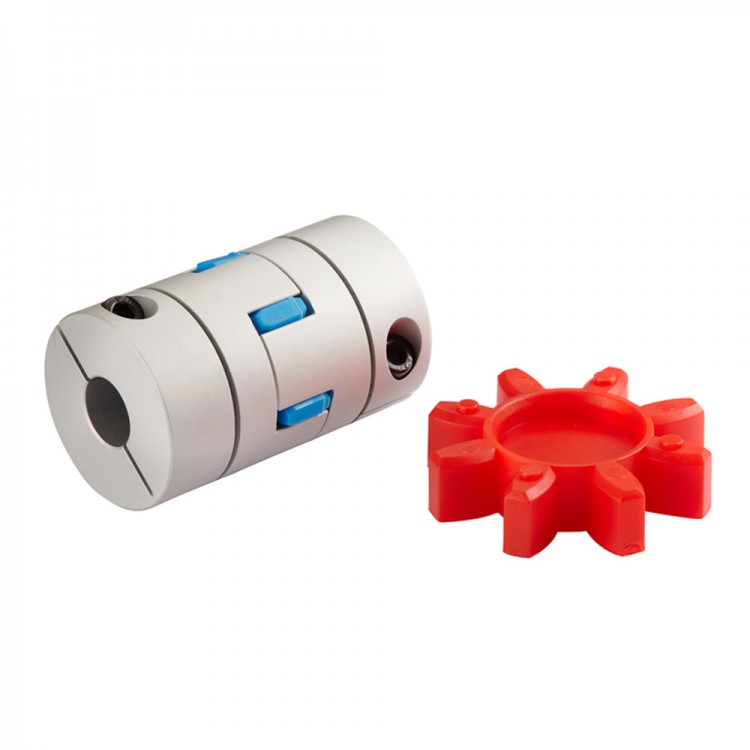

GFC25x30 Plum Blossom Coupling 5mm-12mm Coupler Diaphragm Coupling for Servo Step Motor CNC
Features:
- Overall, volume is small and exquisite
- Can absorb vibration of elastic effect compensation Angle to the radial and axial deviation, and zero rotary gap
- Exactly the same clockwise and counterclockwise rotation characteristics
- Free maintenance, oil resistance, corrosion resistance
- The material for the three kinds of hard aluminum alloy,stainless steel and engineering plastic
- Clampon or to stop payment on the screw connection,can according to customer demand for machining keyway
- Operating temperature: -30~80 deg C

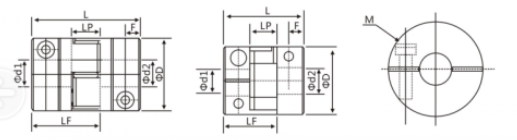

Specification:
- Model: GFC-25x30 mm
- For d1,d2 shaft diameter (mm): 4,5,6,6.35,8,7,9,9.525,10,11,12
- D: 25mm
- L: 30MM
- LF: 20.82mm
- LP: 11.6mm
- F: 8.5mm
- M: M4
- Torque: 2.5N.M
Tech parameter:
- Rated torque: 10N.M
- Off-center torlerance: 0.1mm
- Deflection torlerance: 1 degree
- Axial deviation torlerance: -+0.2mm
- Maximum speed:10000rpm
- Static torque: 90N.M/rad
- Inertia torque: 1.1x10-6
- Sleeve material: Aluminum alloy
- Elastomer material:polyurethane
- Surface process: Anodic oxidation treatment
- Weight: 33g
Packing Content:
- 1 x GFC25x30 Plum Blossom Coupling
