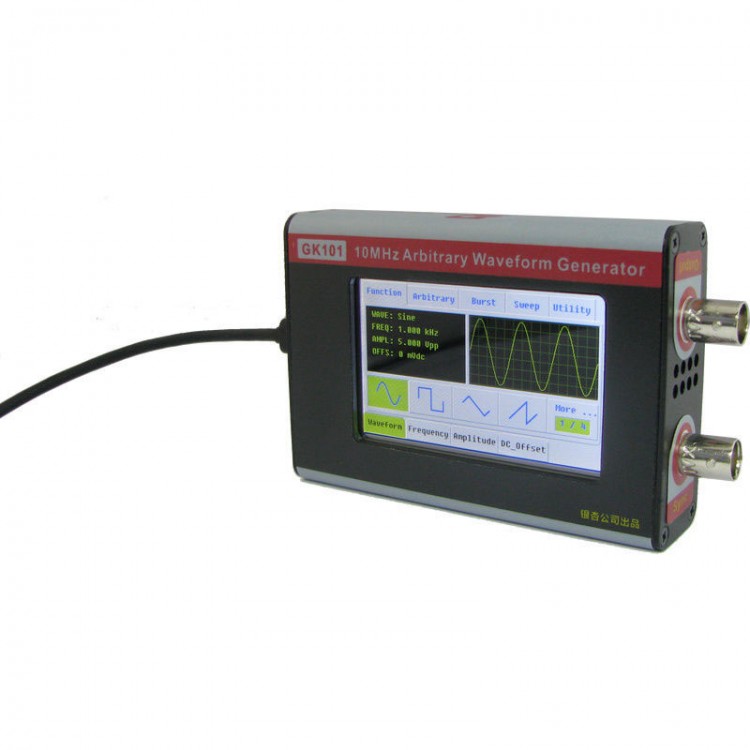

GK101 10Mhz Sine/Square DDS Function Arbitrary Waveform Signal Generator

Gk101 10MHz Arbitrary Waveform Generator based on a number of advanced technology, achieves functions that common instrument has in a small volume. The palm-sized instrument achieves 80M sampling rate, 10MHz maximum frequency, 10Vpp highest amplitude.

The instrument has a full-featured management of arbitrary waveform output function. Arbitrary waveform data use file system management, the protocol is open to users .Users can easily manage multiple arbitrary waveform files through virtual U disk technology.

The instrument uses a high-resolution 3-inch color LCD with a resistive touch screen. With very expressive English language interface, users can quickly use it to express waveform parameters perfectly.

The instrument has a firmware upgrade function. GINGKO will gradually upgrade the instrument firmware based on user feedback .

1. Technical Indicators

#Waveform Characteristics

Standard Waveforms:

Sine                      SINC                           DC

Square                  Noise                          Gaussian

Triangle               Exponential rise        Negative half-wave

Sawtooth rise      Exponential fall        Positive half -wave

Sawtooth fall       Positive full-wave   Negative full-wave

Sample Rate:                            80MS / s

Vertical Resolution:                14bit

Arbitrary Waveform Length:  2 ~ 32K points

Built-in Storage:                      128M

# Frequency Characteristics

Output Range:

Sine:                                  1mHz ~ 10MHz

Square :                             1mHz ~ 10MHz

Others:                              1mHz ~ 10MHz

Resolution:                              1mHz

Accuracy:                                50ppm

# Voltage Characteristics

Output Range:                         10mVpp ~ 10Vpp

     Resolution:                              12bit

     Accuracy:                                 8% of setpoint

     Offset Range:                            5V

     Amplitude Flatness:               $ 0.3dB

# Square Characteristics

Duty Cycle :

1mHz ~ 1MHz:                0.1% ~ 99.9%

1MHz ~ 10MHz:              lock 50%

Rise / Fall Time:                       <20ns

Overshoot:                                <5%

# General

     Output Impedance:                  50 Ω

     Ramp Symmetry:                     0.1% ~ 99.9%

     Sync Signal:                              4.8V ~ 5.2V, TTL level

     Power Requirements:              DC 4.75V ~ 5.25V, <400mA

     Display Characteristics:         3-inch, 240x400 resolution

     Dimensions (L x W x H):        116mmx76mmx26mm

     Weight:                                      180g
