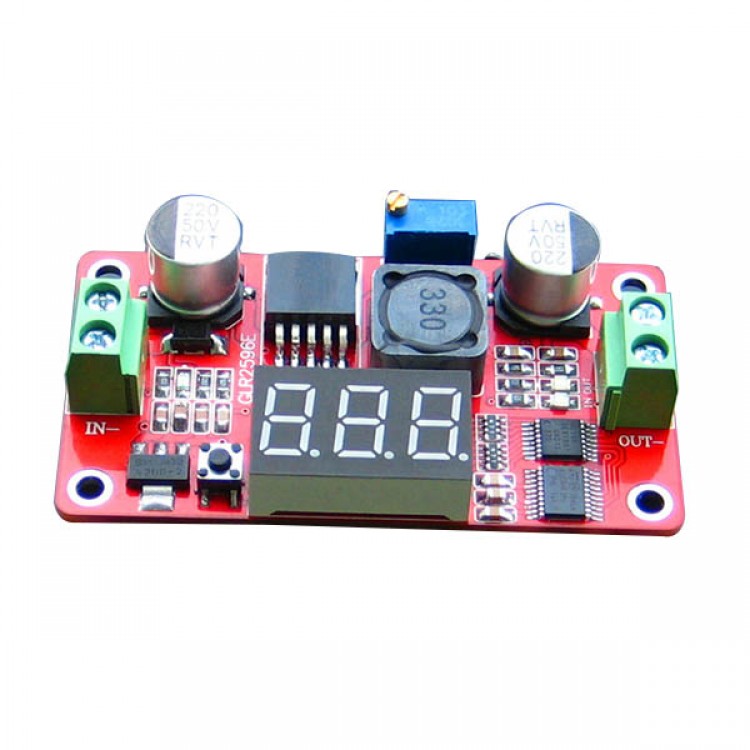

• GLR2596E DC-DC Voltage Regulation Module w/ Voltage Display LM2596

GLR2596E DC-DC Voltage Regulation Module w/ Voltage Display LM2596

Availability: Out Of Stock

  • Price:$10.90
  • Price in reward points: 109 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.68 $10.46 $10.14 $9.70 Contact US
Quantity:

GLR2596E DC-DC Voltage Regulation Module w/ Voltage Display LM2596

Features:
- With Voltmeter Display: 0~40V, error±0.1V;
- Light touch will switch input/output voltage, with indicator lamp show which channel, set power down will reserve.
- Voltmeter could turn off.
- With power indicator lamp, indicator if any power input
- With reverse polarity protection
- With terminals.

Parameters:
- Input voltage: 4.5V-40V, suggest 5.0V--36V;
- Output voltage: 1.2V--37V, suggest 1.5V--32V; continuous adjustable
- Output current: 0--3A, suggest 0--2A;
- Switch efficiency: Max.95%
- Switch frequency: 150KHz, the second switch power technology
- Working temperature: industrial -40℃~ +85℃(output power in 10W)
- Full load temperature rise: <40℃;
- Output wave: <200mV;
- Short circuit protection: output limit current, auto recovery
- Reverse polarity protection: 40V
- With terminals, easy for users wiring
- Size: 65*36*15mm(L*W*H)
- Fixed screw holes: 3.0mm*4, hole pitch, distance from hole center 3.5mm
