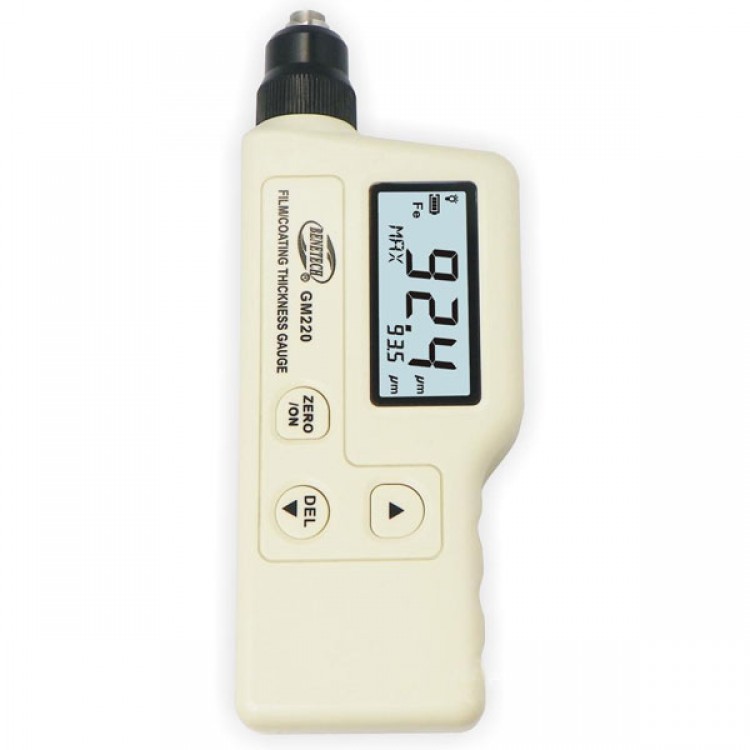

GM220 Film Coating Thickness Gauge Smart Sensor Paint Thickness Meter Tester
  • GM220 Film Coating Thickness Gauge Smart Sensor Paint Thickness Meter Tester
  • GM220 Film Coating Thickness Gauge Smart Sensor Paint Thickness Meter Tester

  • SKU:21771
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 37
  • Price:$370.98
  • Price in reward points: 3710
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $363.56 $356.14 $345.01 $330.17 Contact US

GM220 Film Coating Thickness Gauge Smart Sensor Paint Thickness Meter Tester
Descriptions:
- This portable product adopts magnetic induction technique for measurement. The compact design perform fast,precise and non-destructive digital coating measurement and plating on steel magnetic conductor. It is widely used on manufacturing, workshop, chemistry or quality control fields.
Features:
- LCD display measurement value and status.
- Using Hi- sensibility sensor for precise measurement.
- 0 point, 2 point and basic, three different calibration  methods to make it easy to process the system quickcalibration.
- Measure mode: Single, continually and difference .
- Data record, recall and delete function.
- Data analysis: Average, Maximum, Minimum, standard deviation, and measure times.
- Beep sounds indication.
- Metric / Imperic unit selection.
- Low Battery indication.
- Auto power off .
- LCD backlight .
- Simple, compact structure and portable design.
Specification:
Measurement range:



Range
Resolution
Accuracy
0~1800µm
0.1um/1µm
±(3%H+1)

- Condition of Objective material:
- Suitable for measure non-magnetic coating on magnetic conductor base material.
- The minimum curvature radius.
-  Convex: 2mm   Convex: 2 Concave=11   Concave: 11mm
- Minimum Sample diameter: 12mm
- Minimum Substrate thickness : 0.5mm

Technical parameter
Technical specification
LCD display
3 1/2 display
Power supply
9V Alkaline battery
Operation current
About 14mA
Battery life
Continuously 20 hour .
Auto power off
1 minute
LCD backlight function
7 second.
Operation temperature
0~40?
Operation humidity.
10~95% RH
Low battery indication
7.0V ± 0.2V
Product size
67x 30x 175mm

Package included:
- 1 x Digital film coating thickness gauge
- 1 x 9V battery
- 1 x Instruction Manual
- 6 x Standard sheet gauge
- 1 x Iron base material for calibration
- 1 x Packing Box
