Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $108.32 | $106.11 | $102.79 | $98.37 | Contact US |

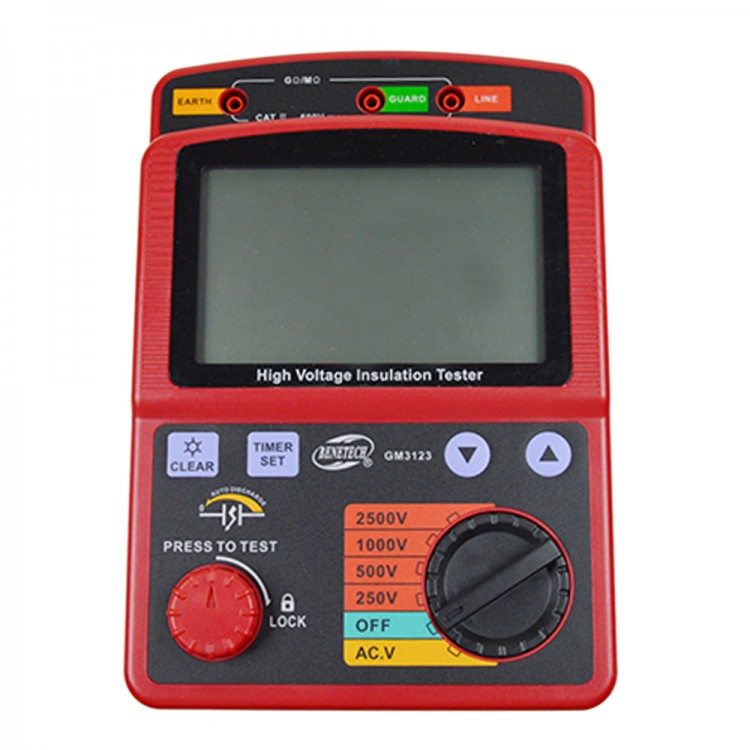

GM3123 High Voltage 2.5KV 99.9GOhm Insulation Resistance Tester Megger Megohm Meter
Specification:
- Rated voltage: 250V/500V/1000V/2500V
- Measuring range: 250V:0.0~499MOhm/500V:0.0~999MOhm; 1000V:0.0~19.9GOhm;2500V:0.0~99.9GOhm
- Accuracy: +-5%rdg +-5%dgt
- DC/AC voltage test: 30~600V
- Resolution: 1.0V
- Overload protection: AC 1200V/10 seconds
- High voltage: AC8320V/5 seconds
- Insulation resistance: 1000M Omega /DC1000V
- The maximum short-circuit current: 1.3mA
- Working voltage: 12V
- Power supply: 8*1.5V LR14 alkaline batteries
- Product size: 220*153*96mm
Package included:
- 1 x Tester
