GPS 20 Channel EM-406A SiRF III Receiver with Antenna for Multicopter
  • GPS 20 Channel EM-406A SiRF III Receiver with Antenna for Multicopter
  • GPS 20 Channel EM-406A SiRF III Receiver with Antenna for Multicopter
  • GPS 20 Channel EM-406A SiRF III Receiver with Antenna for Multicopter

  • SKU:18677
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 15
  • Price:$148.20
  • Price in reward points: 1482
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $145.24 $142.27 $137.83 $131.90 Contact US

GPS 20 Channel EM-406A SiRF III Receiver with Antenna for Multicopter
Descriptions:

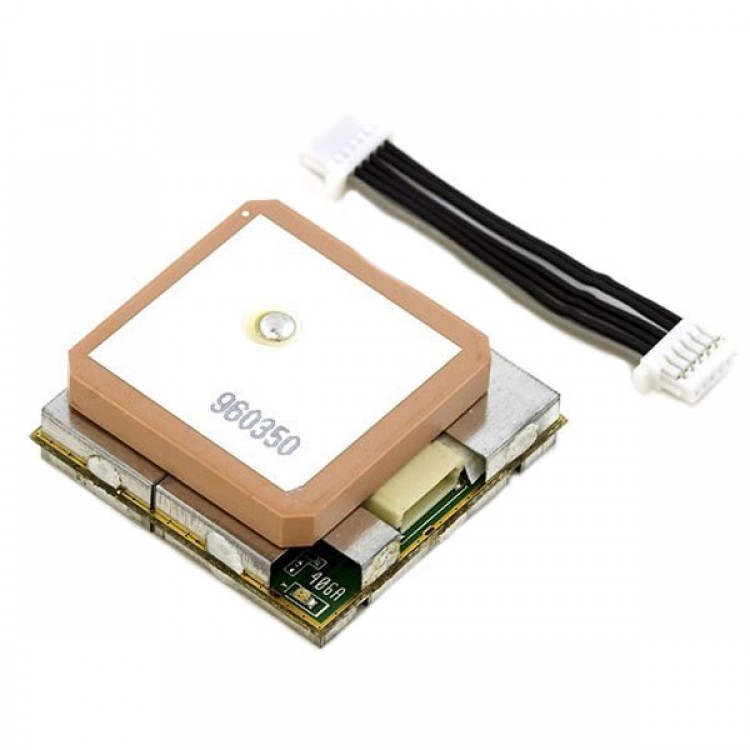

-  The EM-406A GPS module from USGlobalSat based on the spectacular SiRF StarIII chipset. This complete module is built upon the same technology as the ET-301, but includes on-board voltage regulation, LED status indicator, battery backed RAM, and a built-in patch antenna! 6-pin interface cable included

- Note: The cables we have been getting with these have a gray wire on alternating sides of the connector. Check the datasheet for correct pinout. Don't pay attention to which wire is gray, reference the pinout of the actual module.

Features:
- 20-Channel Receiver
- Extremely high sensitivity : -159dBm
- 10m Positional Accuracy / 5m with WAAS
- Hot Start : 1s
- Warm Start : 38s
- Cold Start : 42s
- 70mA at 4.5-6.5V
- Outputs NMEA 0183 and SiRF binary protocol
Dimensions:

- 30mm x 30mm x 10.5mm
- 16g including cable

Documents:
User Manual
