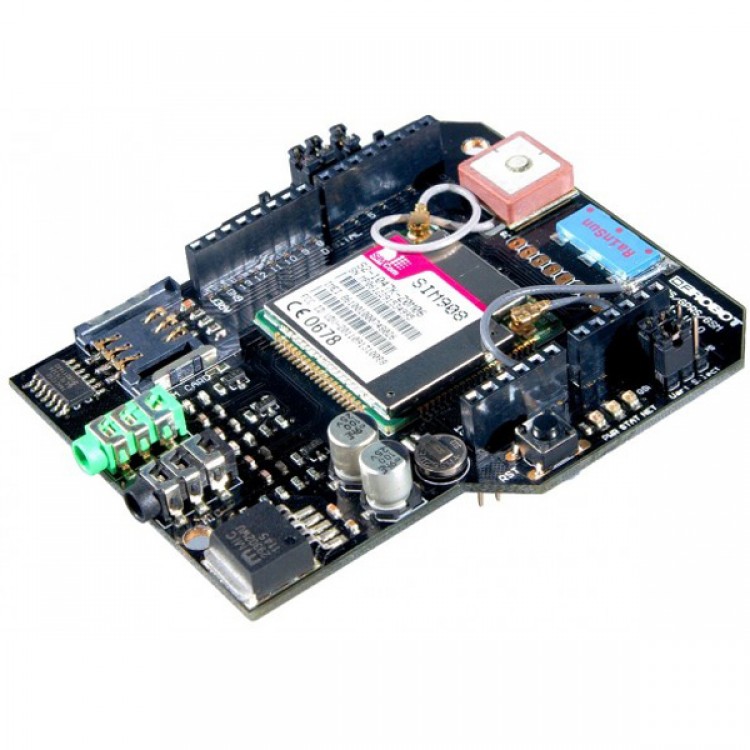

GPS/GPRS/GSM Shield V3.0 Quadband Expansion Board (Arduino Compatible)
  • GPS/GPRS/GSM Shield V3.0 Quadband Expansion Board (Arduino Compatible)
  • GPS/GPRS/GSM Shield V3.0 Quadband Expansion Board (Arduino Compatible)
  • GPS/GPRS/GSM Shield V3.0 Quadband Expansion Board (Arduino Compatible)

  • SKU:25885
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 9
  • Price:$93.16
  • Price in reward points: 932
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $91.30 $89.43 $86.64 $82.91 Contact US

GPS/GPRS/GSM Shield V3.0 Quadband Expansion Board (Arduino Compatible)

Introduction
- This is a GPS/GPRS/GSM shield from DFRobot. This shield with a Quad-band GSM/GPRS engine works on frequencies EGSM 900MHz/DCS 1800MHz and GSM850 MHz/PCS 1900MHz. It also supports GPS technology for satellite navigation. It's possible for your robot and control system to send messages and use the GSM network.
 - It is controlled via AT commands(GSM07.07 ,07.05 and SIMCOM enhanced AT Commands). And the design of this shield allows you to drive the GSM & GPS function directly with the computer and the Arduino Board. It includes a high-gain SMD antenna for GPS & GSM.
 - This GPS/GPRS/GSM shield uses an embedded SIM908 chip from SIMCom.Featuring an industry-standard interface and GPS function, the combination of both technologies allows goods, vehicles and people to be tracked seamlessly at any location and anytime with signal coverage.

Specification

Power supply: 6-12v
Low power consumption (100mA@7v - GSM mode)
Quad-Band 850/900/18001900MHz
GPRS multi-slot class 10
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900MHz)
Control via AT commands(GSM07.07 ,07.05 and SIMCOM enhanced AT Commands)
Support GPS technology for satellite navigation
Embeded high-gain SMD antennas for GPS & GSM
Directly support 4*4 button pad
USB/Arduino control switch
Programmable switch for Arduino
LED indicators for power supply, network states and working status
Board Surface:Immersion Gold
Switches:
S1 -- Programming mode / Communication mode
S2 -- Controlling interface: USB / Arduino
Interfaces:
Embedded SIM card holder
Speaker & Mic Jack socket
Size: 81x70mm
Specifications for SMS via GSM / GPRS
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode
Specification for GPS
Receiver 42 channels, GPS L1 C/A code, High-performance STE engine
Sensitivity:
Tracking: -160 dBm
Cold starts: -143 dBm
Time-To-First-Fix:
Cold starts: 30s (typ.)
Hot starts: 1s (typ.)
Accuracy:Horizontal position: <2.5m CEP
Power consumption (GSM engine in idle mode):Acquisition 77mA,Tracking 76mA

Shipping List
GPS/GPRS/GSM Module V3.0 (1 unit)
