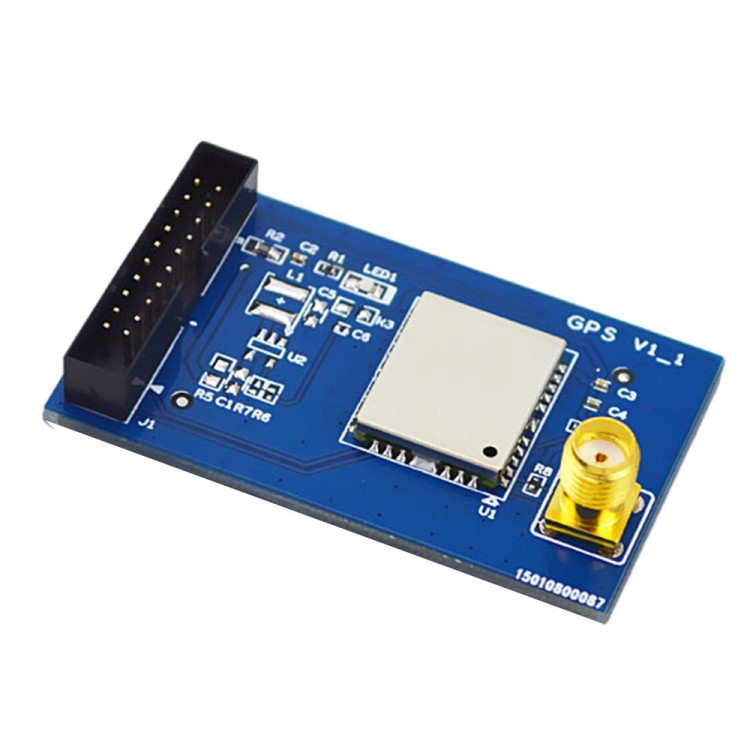

GPS Module 1575.42MHz Antenna for iTOP4412 Elite Edition Development Board DIY
Antenna Specification:
- Center Frequency: 1575.42MHz
- V.S.W.R ≤1.5
- Band Width: ±5 MHz
- Polarization: Right-handed polarization
- Impendence: 50Ohm
LNA Specification:
- LNA Gain(Without cable): ≥27dB
- Noise Figure: ≤1.5dB
- Interference suppression: 20dB(f0±140MHz)
- V.S.W.R: <2.0
- DC Voltage: 3.0±0.3VDC;5.0±0.5VDC
- DC current ≤20mA
Mechanical Specification:
- Weight: <47g
- Size: 46×46×13mm
- Cable: RG174 (3 meters)
- Connector: SMA
- Mounting: Magnetic base
- Housing Color: Black
Environmental Specification:
- Working Temp: -40~+85 C
- Storage Temp: -40~+90 C
- Vibration: Sine sweep 1g(0-p) 10~50~10Hz each axis
- Humidity: 95% (No condensation)
- Waterproof: IP 66 M (GB 4208-84)
- MTBF=1×10-6/pc.hr: 40±5 DC=3.3v
Package List:
- 1 x Module
