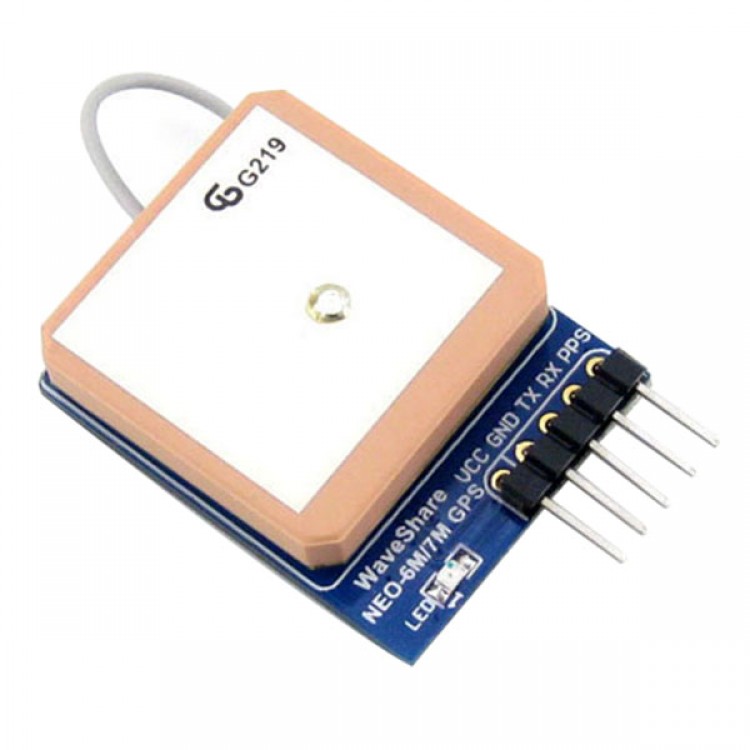

GPS Module GPS Develop Board To Serial Port TTL RS232 Compatible with U-BLOX NEO-7M
Features:
- Using NEO-7M module group, with high gainning active antenna
- TLL level, compatible with 3.3V/5V system
- With IPX interface, can connect with all kinds of active antenna
- With back up battery, can save data when power off, can realize warm boot
Parameters:
- Interface: TTL level, compatible with 3.3V/5V STM system
- Receiving features: 56 channel, GPS L1(1575.42Mhz) C/A, SBAS:WAAS/EGNOS/MSAS
- Positioning precision: 2.5mCEP (SBAS:2.0mCEP)
- Catching time: cold boot: 27s(max speed), warm boot: 1S
- Catching sensitivity: -162dBm
- Oscillator: TCXO (+/-0.5PPM)
- Communication agreement: NMEA(default)/UBX Binary
- Serial communication Baud rate: 9600
- Working temp: -40----85degree
- Working voltage: 2.7V-5.0V(VCC pins input)
- Working current: 35mA
- TXD/RXD impedence: 510 ohm
Application:
- Navigator, quadcopter positioning
Using description:
- VCC: connect to 3.3V/5V
- GND: connect to GND
- TXD: connect to MCU.RX
- RXD: connect to MCU.TX
- PPS: connect to MCU.IO colock pulse ouput(or not connect)
Package list:
- UART GPS NEO-7M-C x 1
