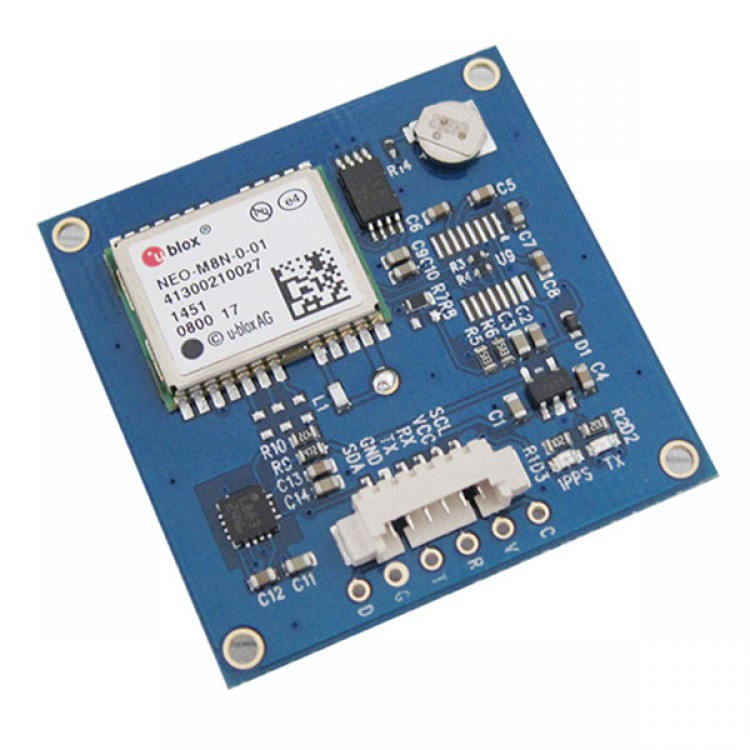

GPS Module UBLOX NEO-M8N APM PIX4 Compass 5883 PIXHAWK for Flight Control UAV Multicopter

GPS Module UBLOX NEO-M8N APM PIX4 Compass 5883 PIXHAWK for Flight Control UAV Multicopter

Description:
- Default: TTL level output, 9600, 1Hz output, standard NMEA-0183 agreement output
- This NEO-M8N AIO module is with FLASH, it can storage data configuration, and can be changed Buad rate, output frequency, output agreement, data will not be lost when power off

Advantages:
- Module: 28*28*10mm
- Adopting Taiwan two class amplifying 28dbm high gaining antenna
- With FLASH, can modify module baud rate and output frequency

Parameters:
- Power supply: DC voltage: 2.8V-6.0V, typical: 3.3V or 5.0V
- Consumption: acquisition: 50mA @5V
- Receiving format: GPS, GLONASS, Galileo, Beidou, QZSS and SBAS
- Receiving channel: 72 searching channels
- Receiving sensitivity: cold start:  -167dBm, acquisition: -148dBm
- Positionig time: cold start: 26S -130dBm,   warm start: 25S    hot start: 3S
- Level positioning precision:    2m  at open wild
- Output frequency: 1HZ-10HZ, default 1HZ
- 1PPS: it outputs one cycle 1S after positioning, high level 100ms impulse, precision 50M
- Acceleration precision: 0.1m/s (Without Aid)
- Acceleration tracking precision: 0.1m/s (Without Aid)
- Max height: 18000m
- Max speed: 515m/s
- Max acceleration: 4G
- UART interface: UART port: TXDA and RXDA
- Support Rate: 4800bps to 115200bps, default 9600bps
- UART is used for NMEA output
- Working temp: -40---85defree
- Storage temp: -40---85degree
- Weight: 10g
