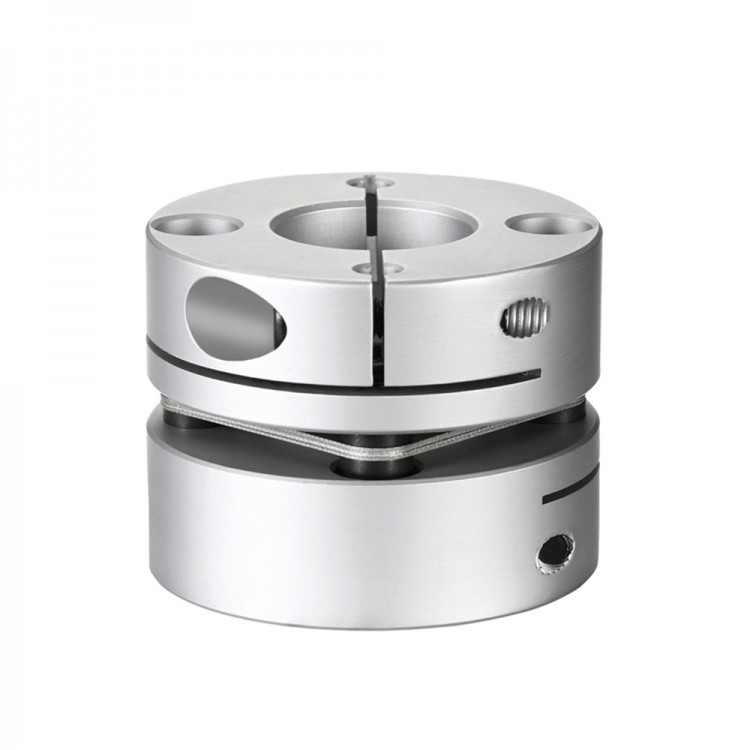

GS34x32 Flexible Single Diaphragm Coupling 5mm-16mm Coupler for Servo Step Motor CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.54
  • Price in reward points: 135 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.27 $13.00 $12.59 $12.05 Contact US
Quantity:

GS34x32 Flexible Single Diaphragm Coupling 5mm-16mm Coupler for Servo Step Motor CNC

Features:

- High torque and precised control
- For servo and stepper motor
- For CW and CCW
- Low inertia
- Diaphragm is made of spring steel

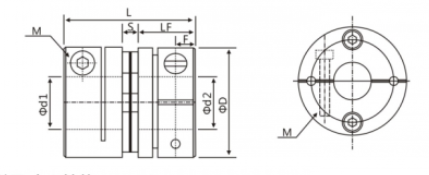

Specification:

- Model: GS-34x32 mm
- For d1,d2 shaft diameter (mm): 5,6,6.35,8,7,9.525,10,11,12,12.7,14,15,16
- D: 34mm
- L: 32MM
- LF: 14.25mm
- S: 3.5mm
- F: 4.85mm
- M: M4
- Torque: 2.5N.M

Tech parameter:
- Rated torque: 3N.M
- Off-center torlerance: 0.1mm
- Deflection torlerance: 1 degree
- Axial deviation torlerance: -+0.18mm
- Maximum speed: 11000rpm
- Static torque: 2250N.M/rad
- Inertia torque: 8.0x10-6
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight: 55g

Packing Content:
- 1 x Single Diaphragm Coupling
