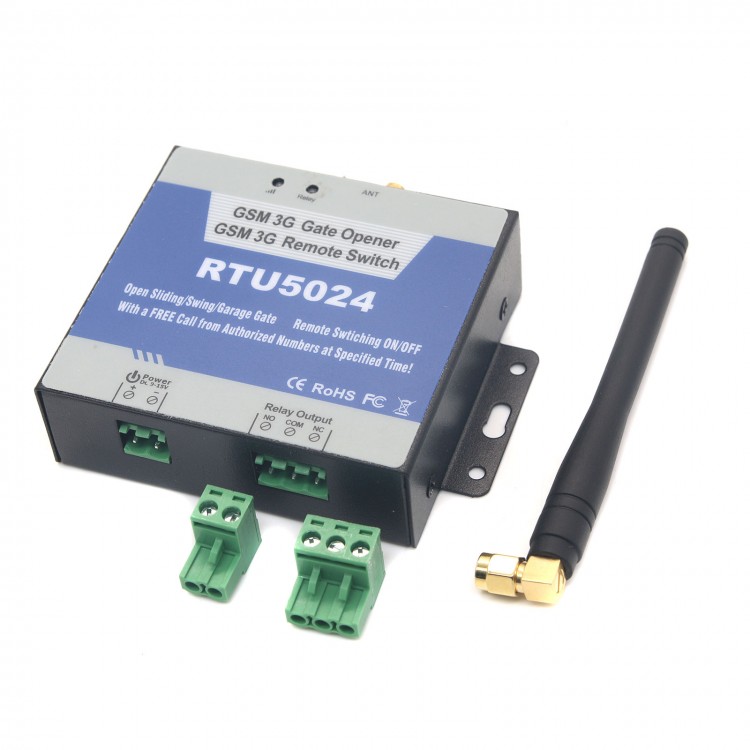

GSM Gate Opener 3G Relay Switch Remote Access Control Wireless Door Opener By Free Call RTU5024

GSM Gate Opener 3G Relay Switch Remote Access Control Wireless Door Opener By Free Call RTU5024

Applications:
- Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!
- Residential: Door,gate,garage access control, electronic fan,microwave,air-conditioner control.
- Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
- Agriculture: Remote control pumps, etc.
- Business: Remote control electronic boxes,bright billboards,LED signs,etc.

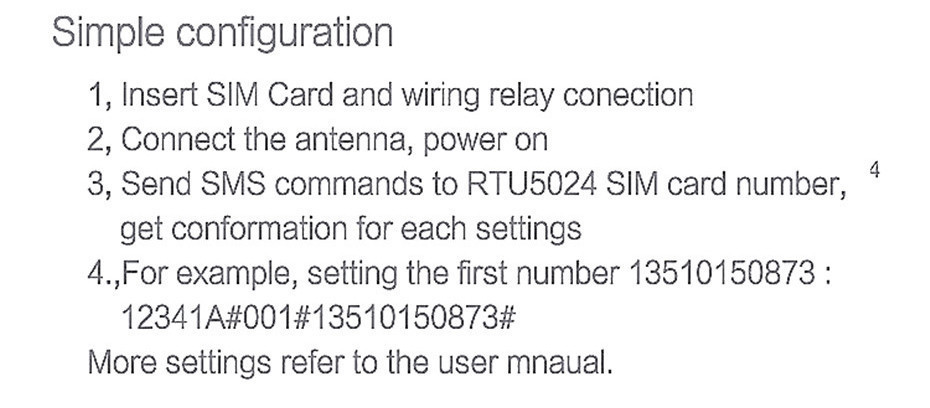

How it works?

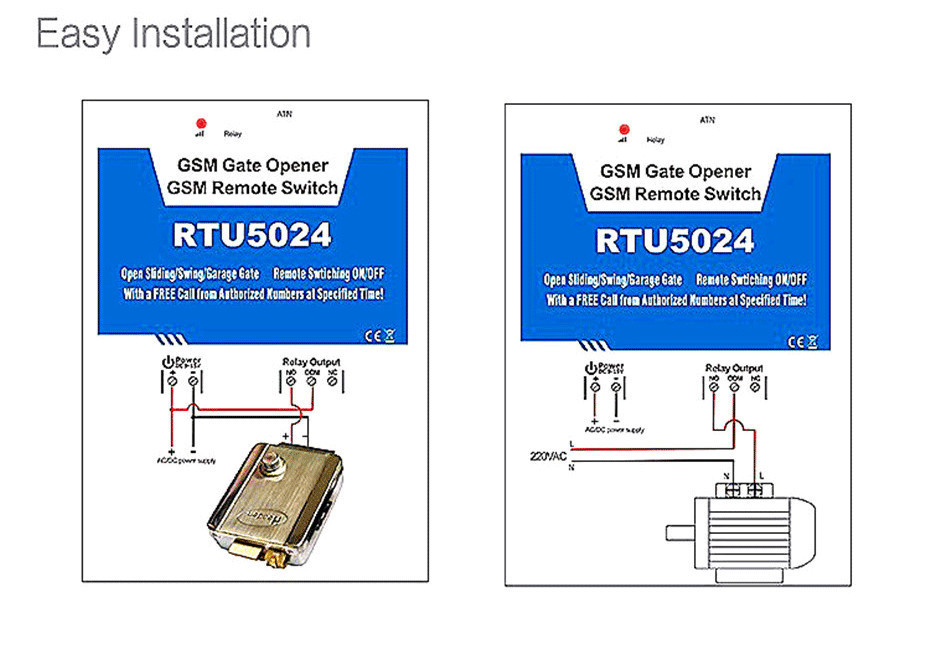

- Wiring the RTU5024 Gate opener with your door locks or other machines.

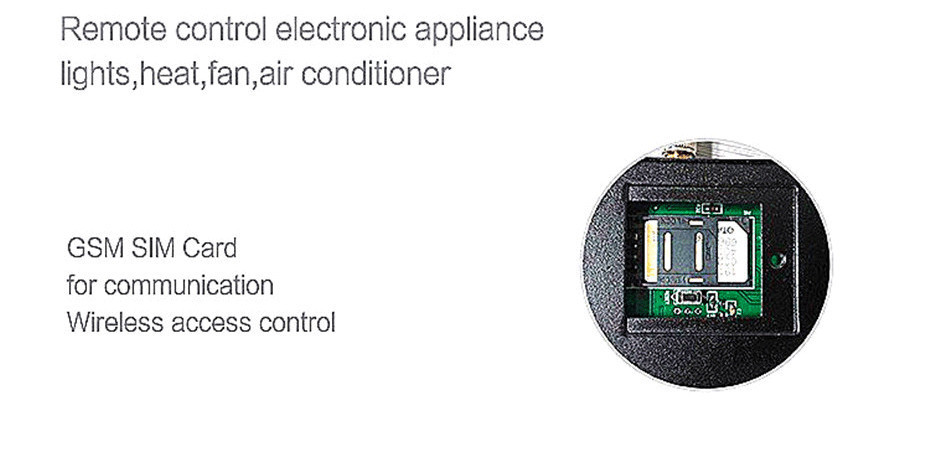

- Insert SIM card to RTU5024 Gate Opener, Power up.
- Send few SMS commands to RTU5024 Gate opener, to assign the authorized user list.
- Make a phone call from the authorized user's phone number, RTU5024 Gate Opener reject phone call and door open or close. For example,If you are using the RTU5024 GSM gate opener for open/close your garage door by your family memebers, what you need is just 2~5 SMS commands only.

Specifications:
- Model: RTU5024
- Founctions: Swing Gate, Sliding Door, Garage Door Locks
- GSM Frequency : 850/900/1800/1900MHz
- Output Relay: NC/NO dry contact,3A/240VAC
- Power Consumption: 12V input Max.50Ma/Standby:15mA
- SIM Card : Support 3V SIM Card
- Antenna  : 50Ohm SMA Antenna interface
- Temperature range  : -20~+60 degree C
- Humidity range : Relative humidity 90%
- Exterior dimension : W102*D76*H27mm
- Support 3G

Note : Support 3G ,but not include any SIM card and AC/DC adaptor.

Packing List
- Gate Opener * 1
- Antenna * 1
- User Manual *1
