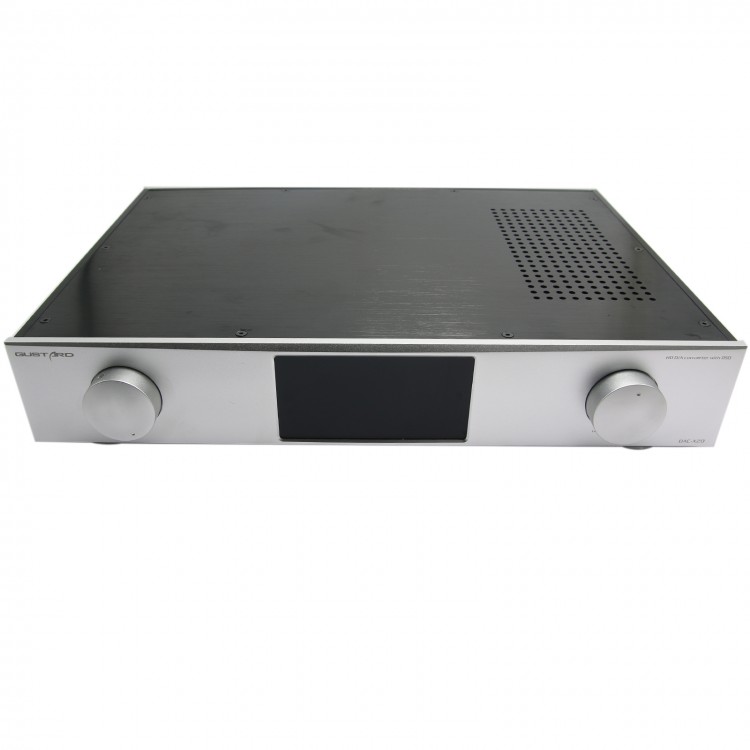

Gustard DAC-X20 Digital Audio Decoder Dual ES9018 XMOS Input Optical Coaxial AES EBU Support DSD DOP without USB Input-White

Gustard DAC-X20 Digital Audio Decoder Dual ES9018 XMOS Input Optical Coaxial AES EBU Support DSD DOP without USB Input-White

Description:
X20 chip uses two main ESS Technology ES9018 Sabre Reference 32bit chip, with XMOS 32bit / 500MIPS performance digital signal processing unit.

Product Features:

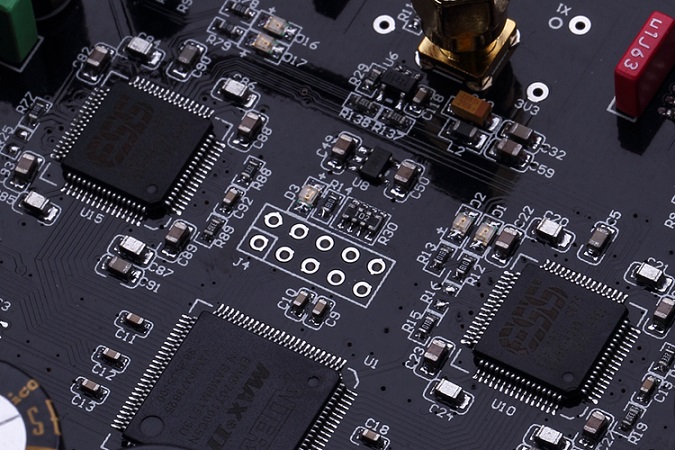

- DAC-X20 core chip uses two ES9018, left and right channels for each one.
- First use of adaptive technology and asynchronous master clock master clock technology, two clock mode can be freely selected.
- Full interface supports DSD decoding. USB support DSD hardware solution, Coaxial Optical AES / EBU support DOP decoding, which can be accessed several broadcast SACD listening to music. Full interface supports 24Bit 192khz (USB 32B 384K).

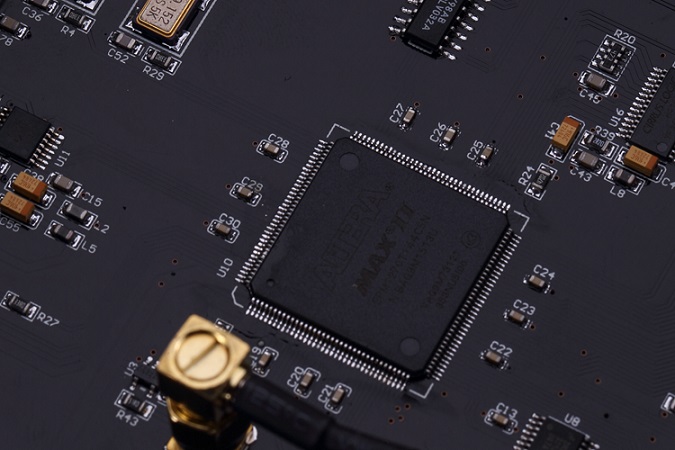

- Using CPLD programmable logic device. MESNAC ES9018.
- 3-speed gain, volume can be adjusted, a total of 100 stalls adjustable volume attenuation from 0 to -99DB.
- USB sub card using XMOS program, PCM up to 32B 384khz, DSD up to DSD128.
- Six kinds of input methods: IIS fiber `BNC coaxial port` AES / EBU`USB, through the key switch.
- Adopt TFT LCD display, adjustable contrast

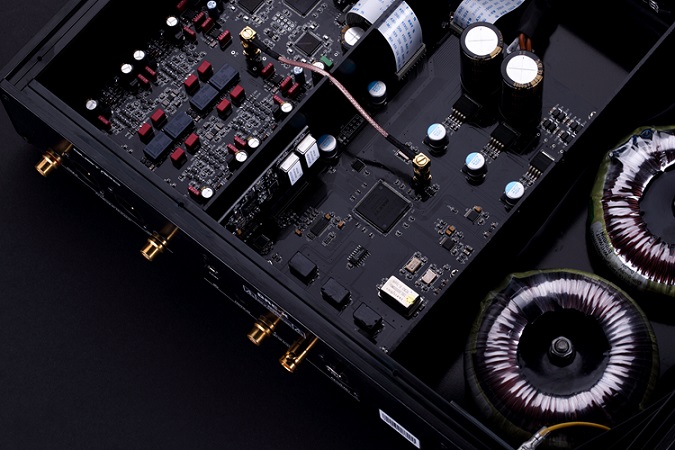

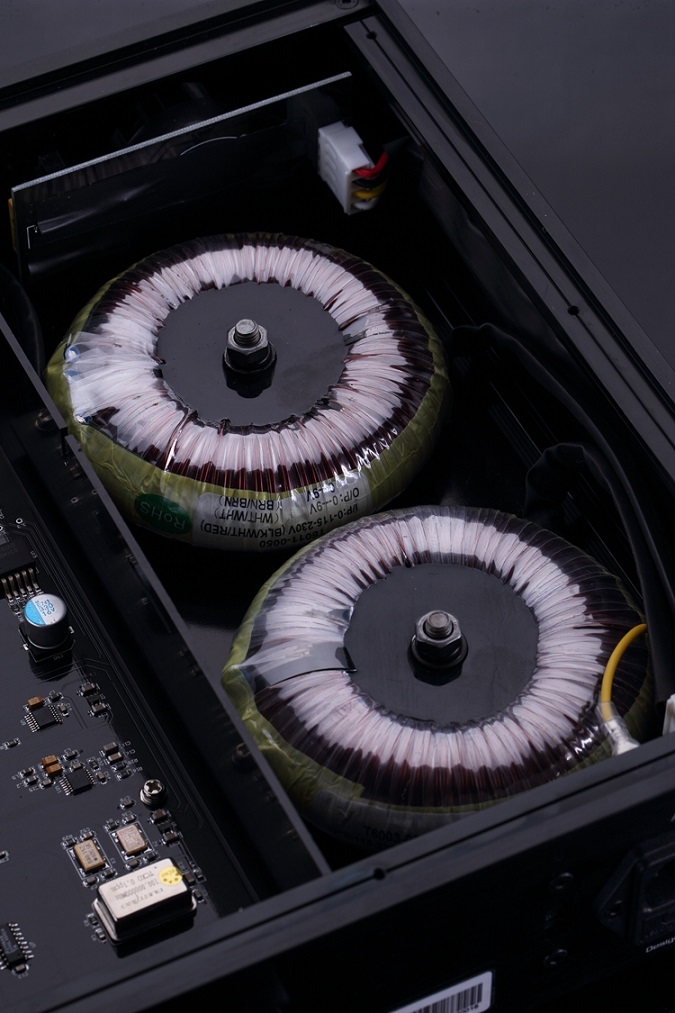

- Power supply with two O-type transformers, digital and analog independent power supply, and the use of discrete components regulation.

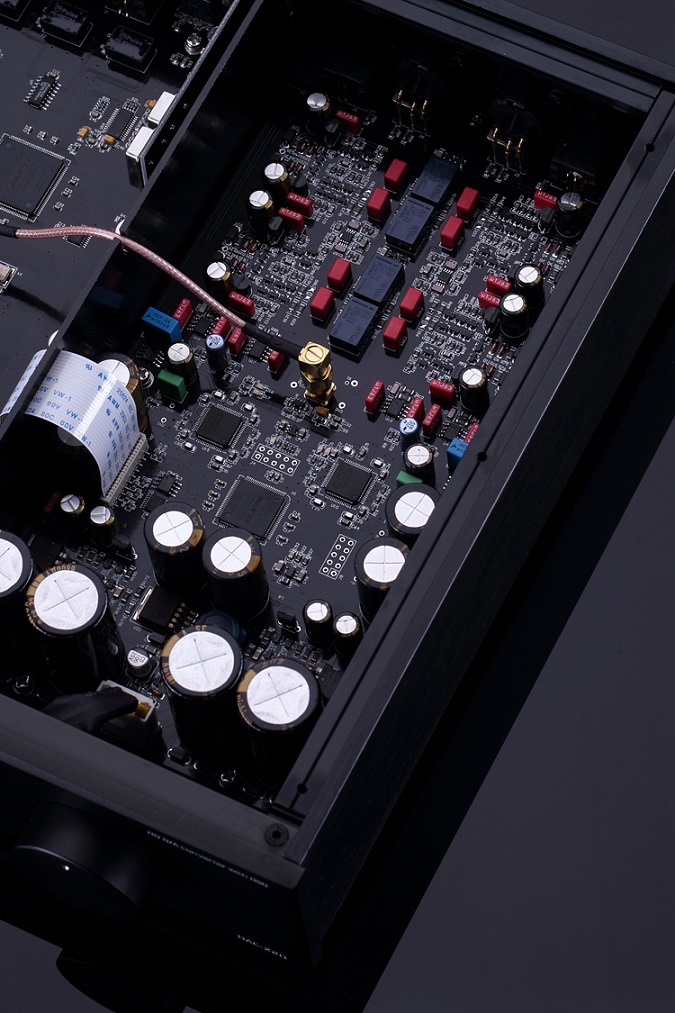

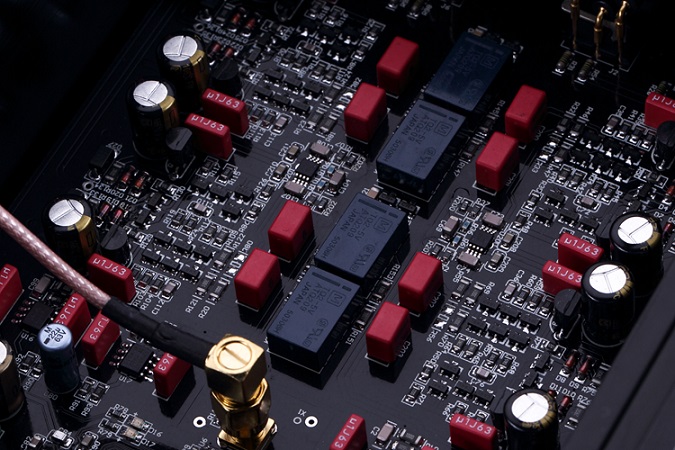

- Fully balanced analog line discrete components. Unbalanced RCA output simultaneously.

DAC Specifications:
- ESS Technology ES9018 Sabre Reference 32-bit DAC
- 8 mono to 2 stereo configuration, four D / A converters per channel

Digital inputs:
Coaxial, BNC:
- PCM: 16-24bit /44.1,48,88.2,96,176.4,192 kHz
- DOP: DOP64

Optical:
- PCM: 16-24bit /44.1,48,88.2,96,176.4,192 kHz
- DOP: DOP64

AES / EBU:
- PCM: 16-24bit /44.1,48,88.2,96,176.4,192 kHz
- DOP: DOP64

IIS:
- PCM: 16-32bit /44.1,48,88.2,96,176.4,192,352.8,384kHz
- DSD: DSD64, DSD128, DSD256, DSD512
- DOP: DOP64, DOP128 DOP256, DOP512
- USB: 16-32bit / 44.1,48,88.2,96,176.4,192,352.8,384 kHz
- DSDx64 (2.8224MHz), DSDx128 (5.6448MHz)

Analog output:
- RCA Output level: 2.3 Vrms @ 0dBFS
- XLR output level: 4.6 Vrms @ 0dBFS (XLR interface definition: 1 to 2 hot, 3 cold)
- Frequency Response: 20-20K Hz +/- 0.15dB
- Power Supply: AC 230V 50 / 60Hz (AC 115V 50 / 60Hz)
- Power consumption: <50W
- Size (not including protruding part): Width 380MM * 65MM * deep high 260MM.

Note: This one is without USB input.

Package included:
- DAC-X20 *1
