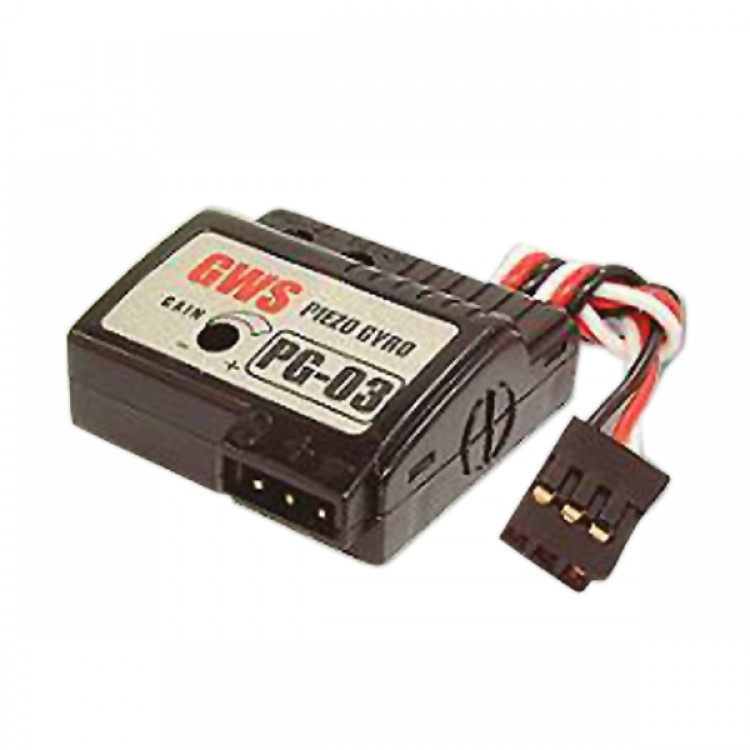

GWS GW/PG-03 Single Axis PG-03 Piezo Gyro
The PG-03's ultra-light weight and incredible compact size allow installation in all classes of robot or other applications. If you need to detect an axis rotation of your robot, this gyro is perfect for the task. A unique red and green LED indicator system simplifies gyro setup and gyro direction for all users.
The PG-03's is habitually used with helicopters and aircraft's RC system. It compares the input signal from the receiver with the motion of your model and compensates in real time any error occurring. The gyro is actually very popular either in robot wars and robot race competitions. This sensor enables your robot to go in a perfectly straight line.
- Dimensions: 26.0x27.0x11.3 mm (1.02x1.06x0.45 in )
- Weight: 7.0 g (0.285oz) with Plastic Case
- Input Voltage: 4.8V~6.0 V
- Current Consumption: 10mA
- Gain Adjustment: Single rate, non-remote
- Operation Temp.: -5℃ (23 deg F) ~ 60℃ (140 deg F)
- Applicable R/C System: Futaba, JR,Hi-tec, Sanwa / Airtronics,Multiplex, GWS
